Yamaha — 9.9f / 9.9fmhl

Exploded diagrams and part specifications.

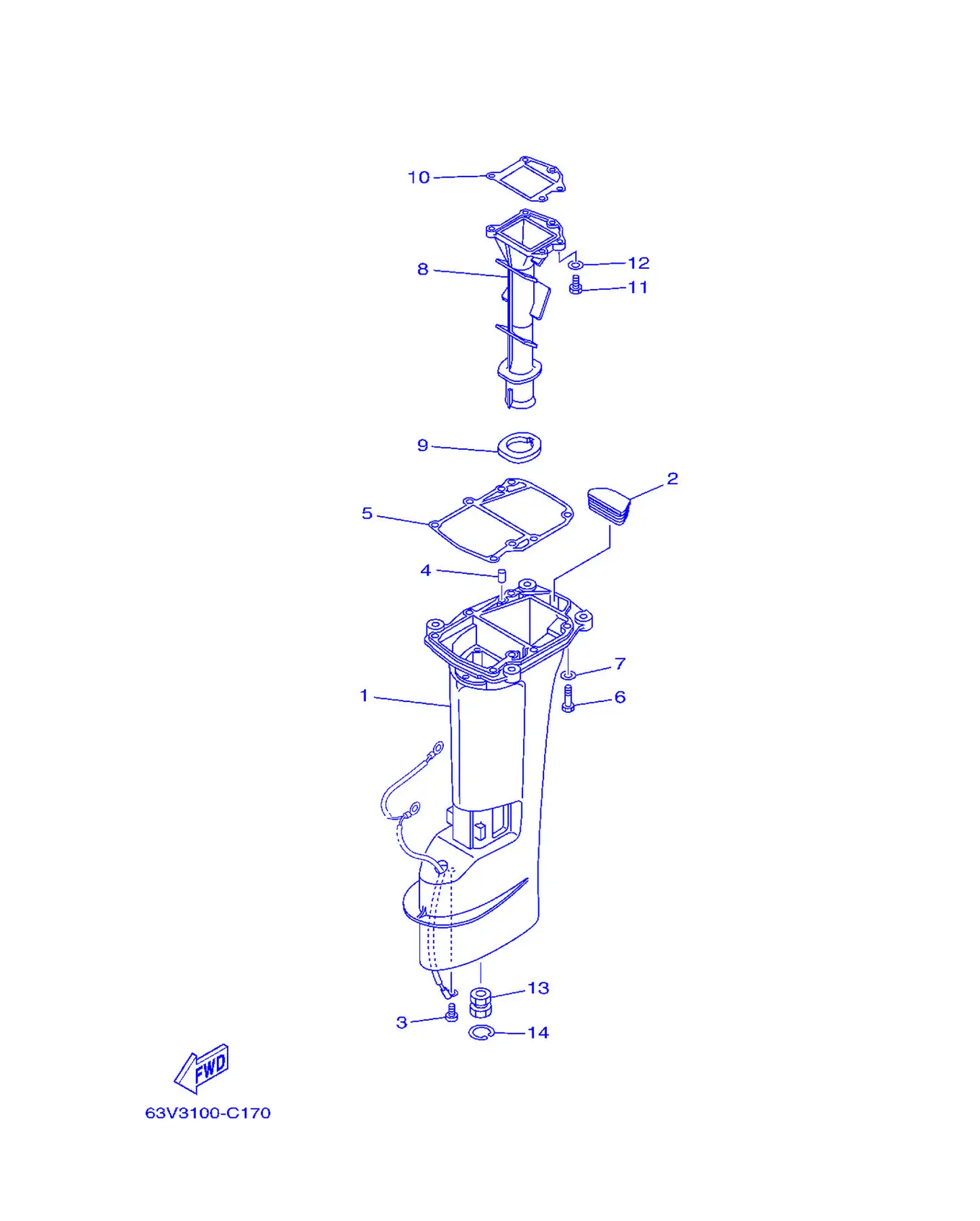

Fig. 1Upper Casing

REF	Part No.	Name	Qty
1	63V-45111-15-4D	Casing,Upper	1
2	63V-45126-01	Plate,SealDamper	1
3	90157-06M06	Screw, Pan Head	1
4	93606-12019	Pin, Dowel	2
5	63V-45113-A1	Gasket,UpperCasing	1
6	97095-08030	Bolt	6
7	92995-08600	Washer	6
8	65F-41131-00-5B	Manifold,Exhaust 1	1
9	63V-41135-00	Gasket, Exhaust Manifold	1
10	63V-41133-A1	Gasket, Exhaust Manifold	1
11	97095-06020	Bolt	5
12	92995-06600	Washer	5
13	682-45318-00	Bushing,Drive Shaft	1
14	93420-30042	Circlip	1

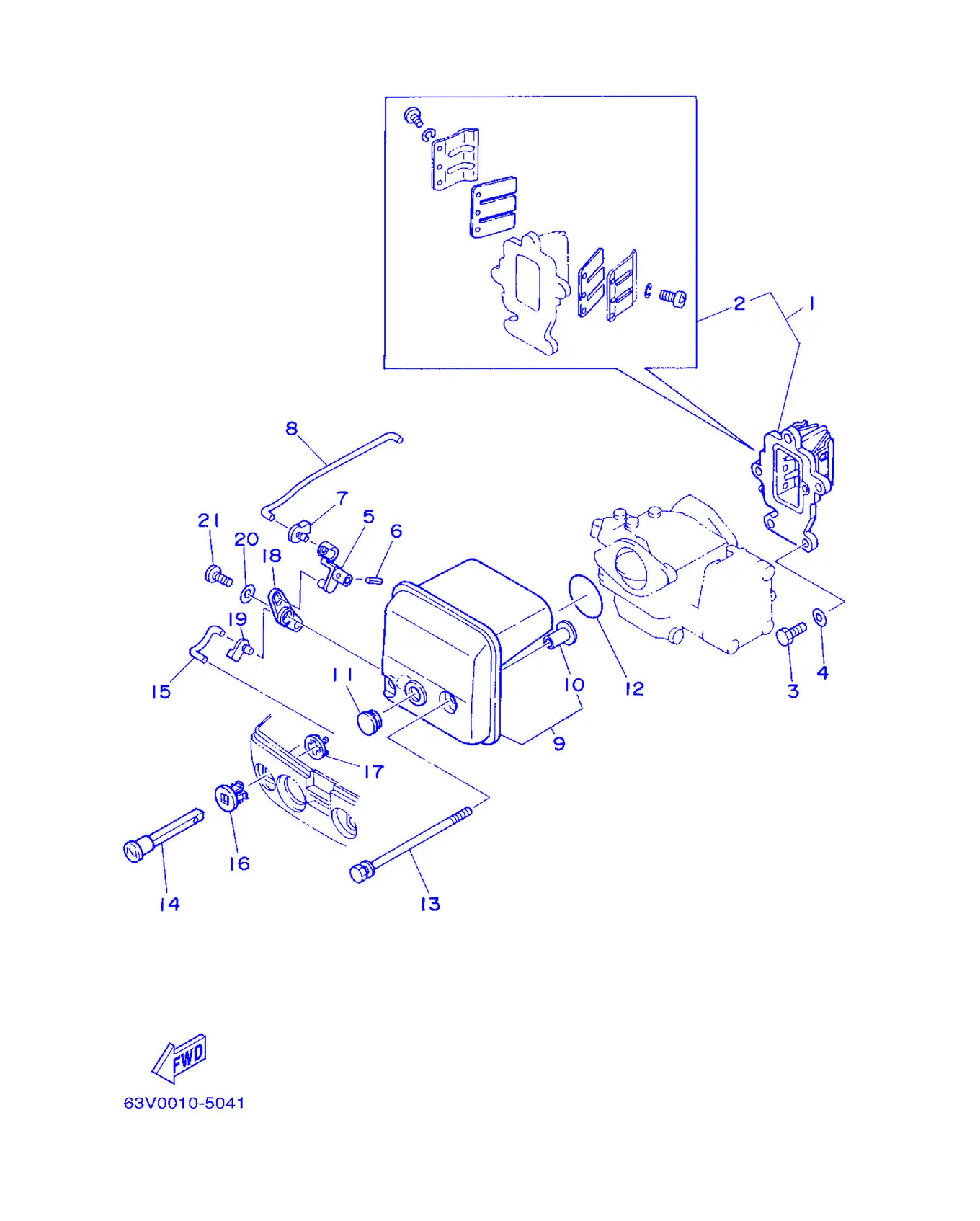

Fig. 2Intake

REF	Part No.	Name	Qty
1	63V-13610-10	Reed ValveAssembly	1
1	63W-13610-00	Reed ValveAssembly	1
2	682-W0004-00	LeadSet	1
3	97095-06020	Bolt	3
4	92995-06600	Washer	3
5	63V-41253-00	Lever, Choke	1
6	91690-20010	Pin,Spring	1
7	63V-41262-00	Joint, Choke Lever	1
8	63V-41257-00	Rod, Choke 2	1
9	63V-14440-00	SilencerAssembly,Intake	1
10	90387-06M15	Color	2
11	90480-12M25	Grommet	1
12	93210-35M86	O-ring	1
13	90119-06M94	Bolt, With Washer	2
14	6H4-41271-01	Knob, Choke	1
15	63V-41256-00	Rod, Choke 1	1
16	689-41273-00	Grommet	1
17	6J8-41274-00	Grommet 2	1
18	63V-41252-00	Lever, Choke 1	1
19	661-41262-02	Joint, Choke Lever	1
20	90201-05M09	Washer,Plate	1
21	90164-05M03	Screw, Tapping	1

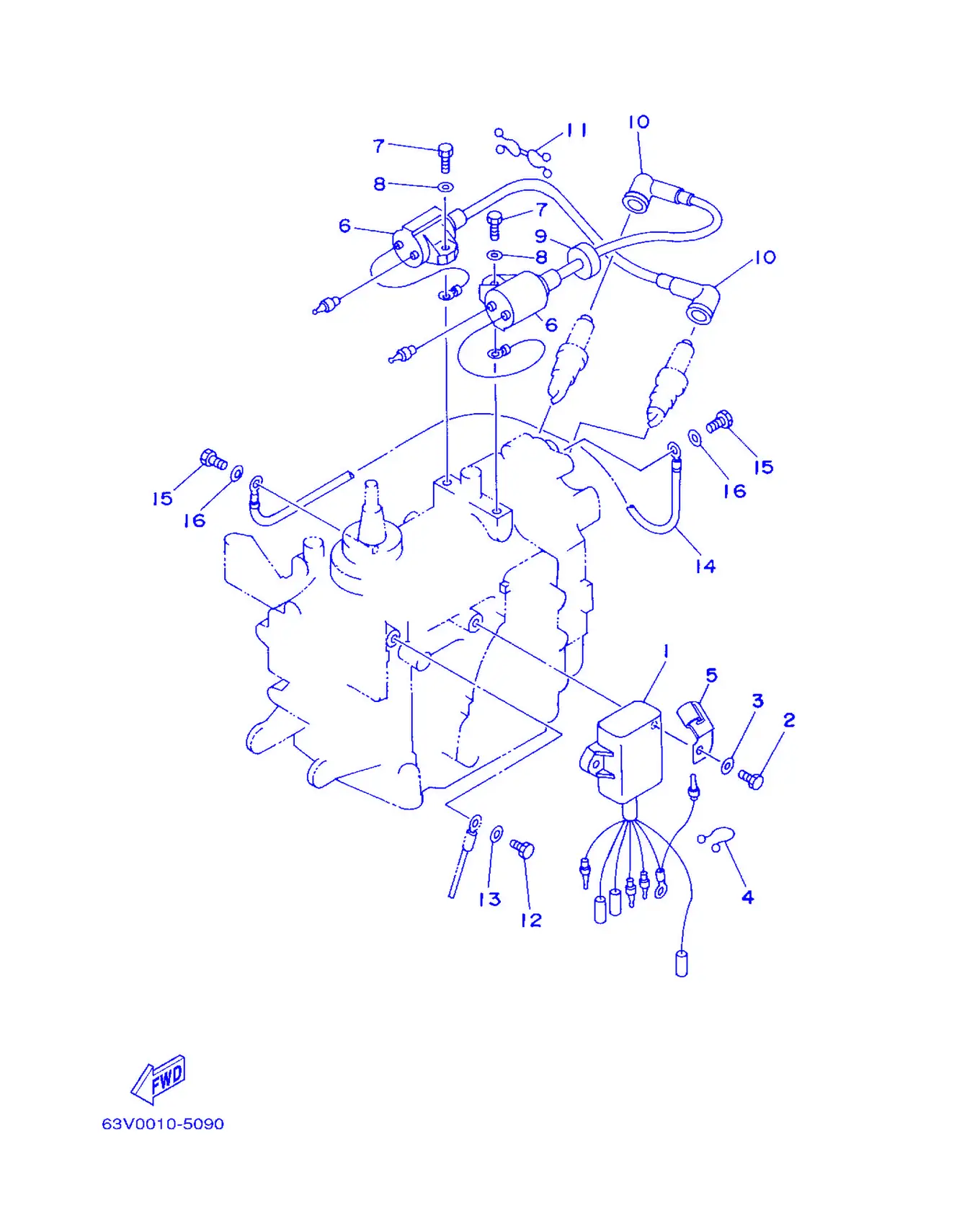

Fig. 3Electrical

REF	Part No.	Name	Qty
1	63V-85540-01	C.D.I. Unit Assembly	1
2	97095-06020	Bolt	2
3	92995-06600	Washer	2
4	90464-15M11	Clamp	1
5	90465-08M61	Clamp	1
6	63V-85570-00	Ignition Coil Assembly	2
7	97095-06018	Bolt	2
8	92995-06600	Washer	2
9	90480-25161	Grommet	1
10	663-82370-01	PlugCapAssembly	2
11	90464-08M02	Clamp	1
12	97095-06012	Bolt	1
13	92995-06600	Washer	1
14	662-82519-00	Wire, Earth Lead	1
15	97095-06012	Bolt	2
16	92995-06600	Washer	2

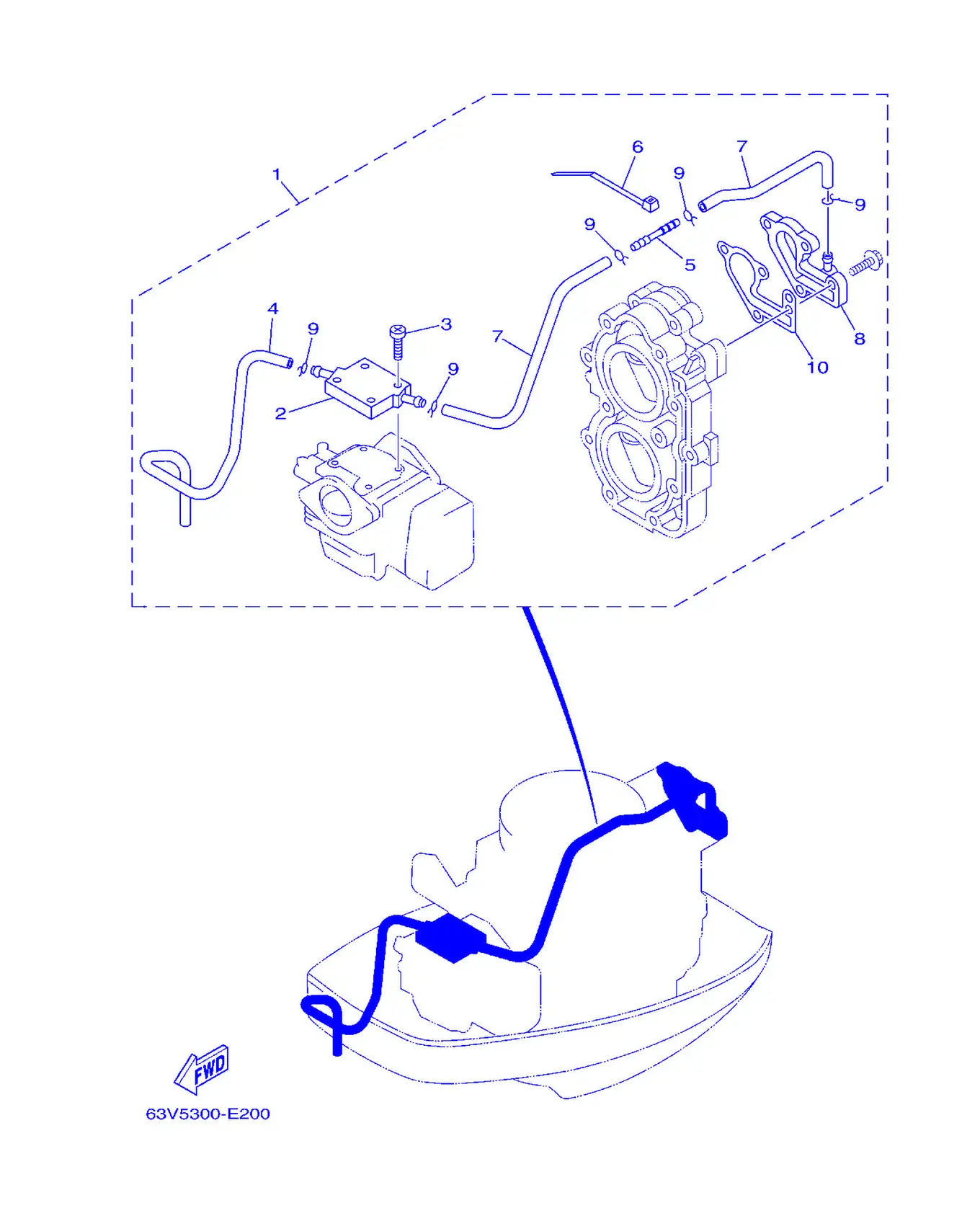

Fig. 4Optional Parts

REF	Part No.	Name	Qty
1	63V-12440-51	Heat Exchanger Assembly	1
2	63V-12466-50	Exchanger, Heat	1
3	97885-04020	Screw, Pan Head	4
4	90445-09M08	Hose (L550)	1
5	6E5-83558-10	End, Nipple	1
6	90465-11M10	Clamp	1
7	90445-09M54	Hose	2
8	63V-12413-50	Cover, Thermostat	1
9	90467-08M10	Clip	5
10	682-12414-A1	Gasket,Cover	1

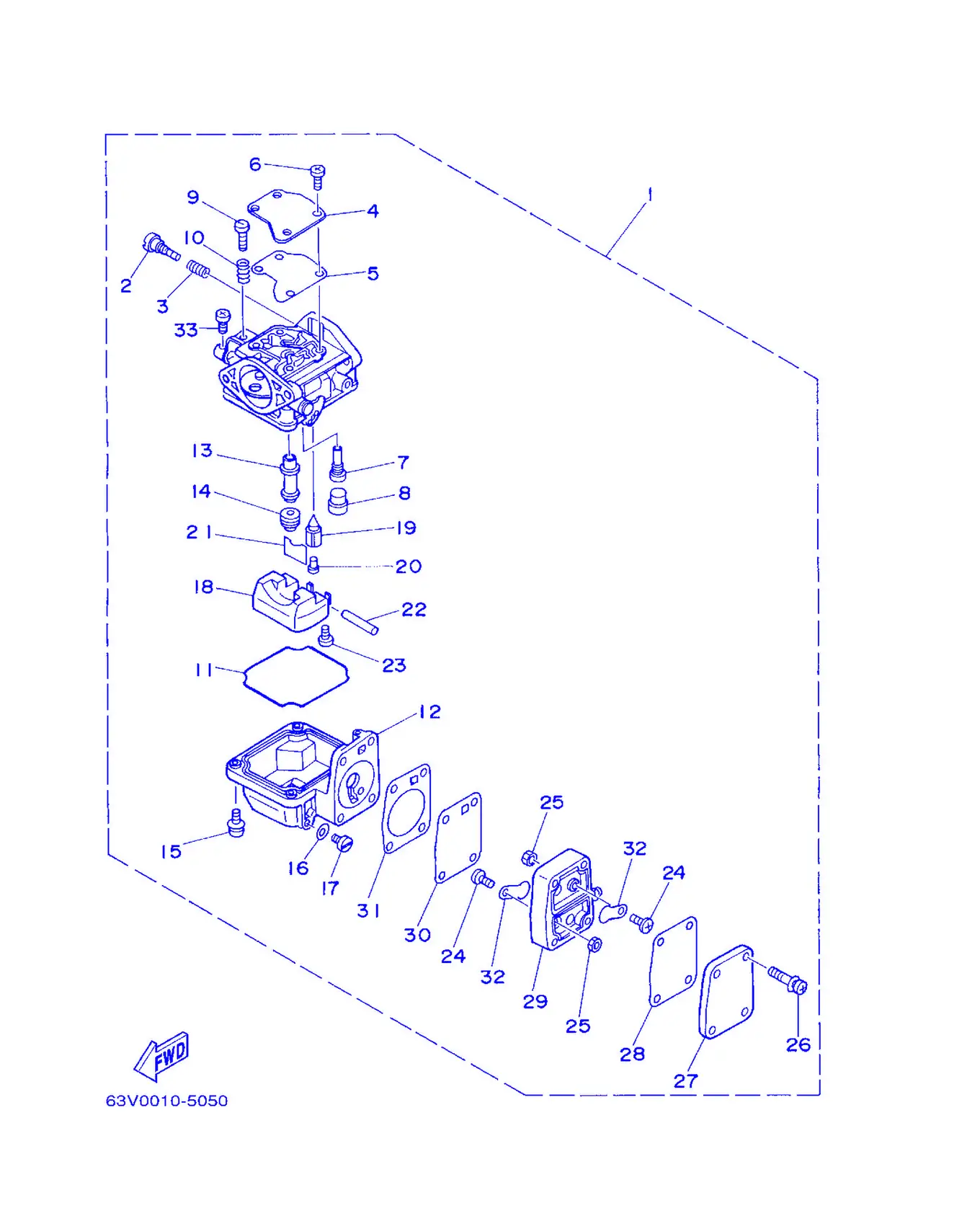

Fig. 5Carburetor

REF	Part No.	Name	Qty
1	63V-14301-00	CarburetorAssembly 1	1
2	679-14923-00	Screw,Pilot	1
3	679-14555-00	Spring	1
4	63V-14527-00	Plate	1
5	63V-14126-00	Gasket	1
6	97803-04010	Screw, Pan Head	4
7	63V-14948-06	Jet (#48)	1
8	679-14966-00	RubberCap	1
9	63V-14523-00	Screw, Stop	1
10	90501-10326	Spring, Compression	1
11	63V-14984-00	Gasket, Float Chamber	1
12	63V-14980-00	Body, Float Chamber	1
13	63V-14947-00	Jet,Needle	1
14	676-14943-29	Jet,Main (#110)	1
15	97980-04114	Screw, Washer	4
16	65W-14398-00	Gasket	1
17	6G1-14992-00	Screw, Drain	1
18	63V-14985-00	Float	1
19	6G1-14546-01	Valve, Needle	1
20	676-14186-00	Pin, Float	1
21	663-14159-00	Clip	1
22	6H4-14548-00	Pin, Float Arm	1
23	98580-04008	Screw, Pan Head	1
24	98980-03006	Screw, Blind	2
25	95380-03600	Nut	2
26	97980-04125	Screw, Washer	4
27	6G1-24452-00	Cover	1
28	63V-24411-00	Diaphragm	1
29	6G1-24412-01	Body 1	1
30	6G1-24411-00	Diaphragm	1
31	6G1-24431-01	Gasket, Fuel Pump 1	1
32	6L5-24421-00	Valve, Check	2
33	98580-04006	Screw, Pan Head	1

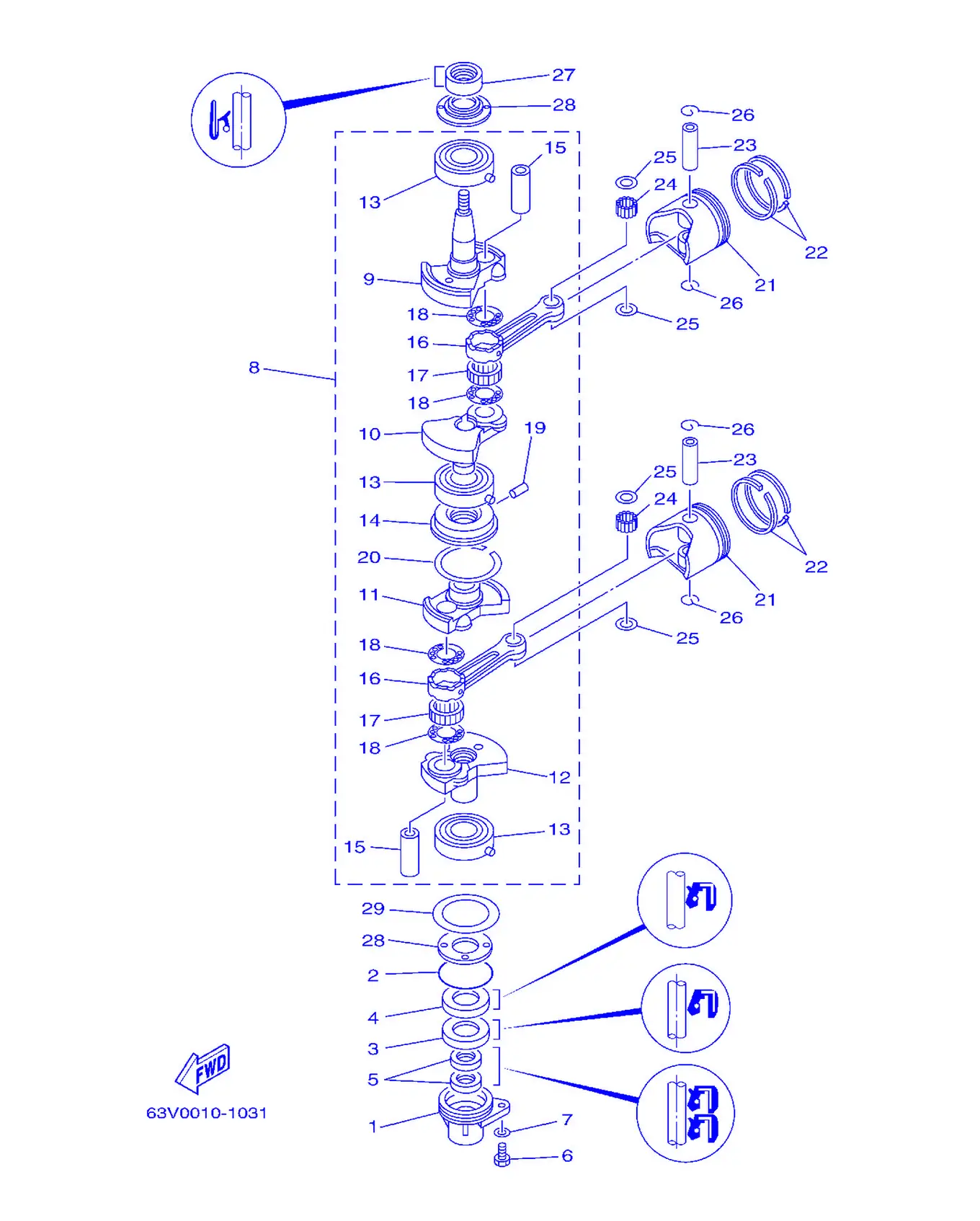

Fig. 6Crankshaft & Piston

REF	Part No.	Name	Qty
1	63V-15396-01-94	Housing,OilSeal	1
2	93210-46M16	O-ring	1
3	93101-25018	OilSeal	1
4	93102-25M48	OilSeal	1
5	93101-13018	OilSeal	2
6	97095-06016	Bolt	1
7	92995-06600	Washer	1
8	63V-11400-01	CrankshaftAssembly	1
9	63V-11412-00	Crank 1	1
10	63V-11422-00	Crank 2	1
11	63V-11432-00	Crank 3	1
12	63V-11442-00	Crank 4	1
13	93306-205U7	Bearing	3
14	63V-11515-02	Seal, Labyrinth 1	1
15	682-11681-00	Pin, Crank 1	2
16	650-11651-04	Rod, Connecting	2
17	93310-620V5	Bearing	2
18	90209-20M23	Washer	4
19	91609-20008	Pin, Spring	1
20	93440-52009	Circlip	1
21	6E7-11631-00-97	Piston (STD)	2
21	6E7-11635-00	Piston (0.25MM O/S)	2
21	6E7-11636-00	Piston (0.50MM O/S)	2
22	682-11610-01	PistonRingSet (STD)	2
22	682-11610-11	Piston Ring Set (0.25MM O/S)	2
22	682-11610-21	Piston Ring Set (0.50MM O/S)	2
23	634-11633-00	Pin,Piston	2
24	93602-14104	Pin, Dowel	50
25	90201-14377	Washer,Plate	4
26	93450-15023	Circlip	4
27	93110-23M00	OilSeal	1
28	63V-11445-00	Spacer	2
29	90201-46M29	Washer,Plate	1

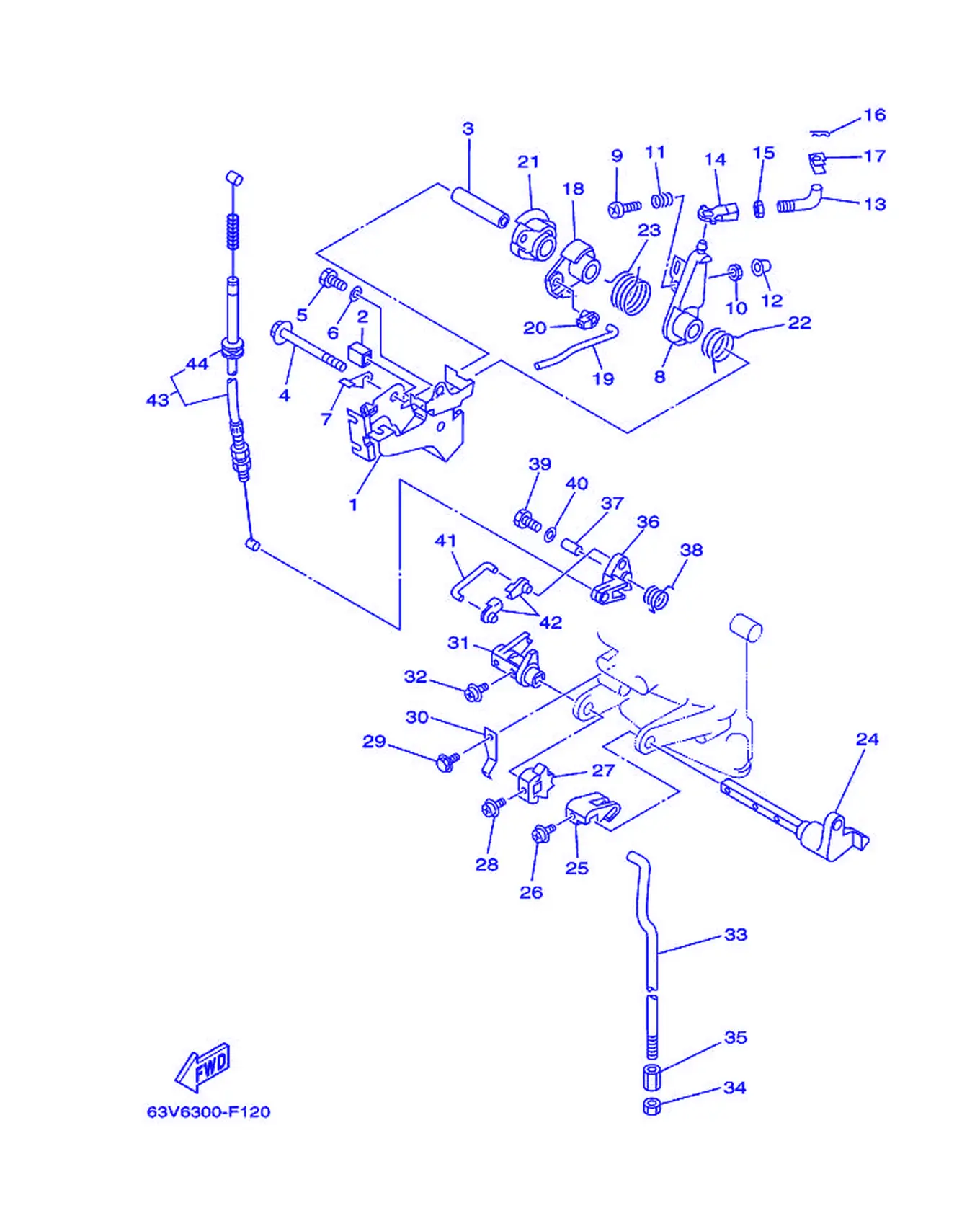

Fig. 7Control

REF	Part No.	Name	Qty
1	63V-14497-02	Stay, Throttle Wire	1
2	689-44194-00	Cap	1
3	90387-06M50	Color	1
4	95895-06065	Bolt, Flange	1
5	97095-06012	Bolt	1
6	92995-06600	Washer	1
7	63V-41282-00	Stopper, Free Axel Link	1
8	63V-41631-01	Lever, Magnet Control	1
9	97885-06030	Screw, Pan Head	1
10	95380-06600	Nut, Hexagon	1
11	90501-12M16	Spring, Compression	1
12	688-44194-00	Cap	1
13	63V-41238-00	Joint, Link	1
14	6H4-41237-00	Joint, Link	1
15	95380-05700	Nut	1
16	90468-10005	Clip	1
17	63V-41223-00	Washer,Lock 1	1
18	63V-41283-01	Lever, Free Accelerator	1
19	63V-41211-00	Link, Accelerator	1
20	661-41262-02	Joint, Choke Lever	1
21	63V-41638-00	Pulley	1
22	90508-16M37	Spring, Torsion	1
23	90508-20M38	Spring, Torsion	1
24	63V-44123-01	Arm, Shift Rod	1
25	63V-44121-01	Lever, Shift Rod	1
26	90159-05M25	Screw, With Washer	1
27	63V-44125-00	Lever, Shift Rod	1
28	90159-05M25	Screw, With Washer	1
29	95895-06012	Bolt, Flange	1
30	63V-44116-00	Spring	1
31	63V-44122-01	Bushing, Shift Rod Lever	1
32	90159-05M25	Screw, With Washer	1
33	63V-44143-01	Rod, Shift	1
34	95380-06700	Nut	1
35	61N-44146-00	Connector, Shift Rod	1
36	63V-15746-10	Arm	1
37	90387-06M06	Color	1
38	90508-08M39	Spring, Torsion	1
39	97095-06020	Bolt	1
40	92995-06600	Washer	1
41	6L2-15747-00	Link	1
42	661-41262-02	Joint, Choke Lever	2
43	63V-15770-01	Cable Complete, Starter Stop	1
44	90480-10M16	Grommet	1

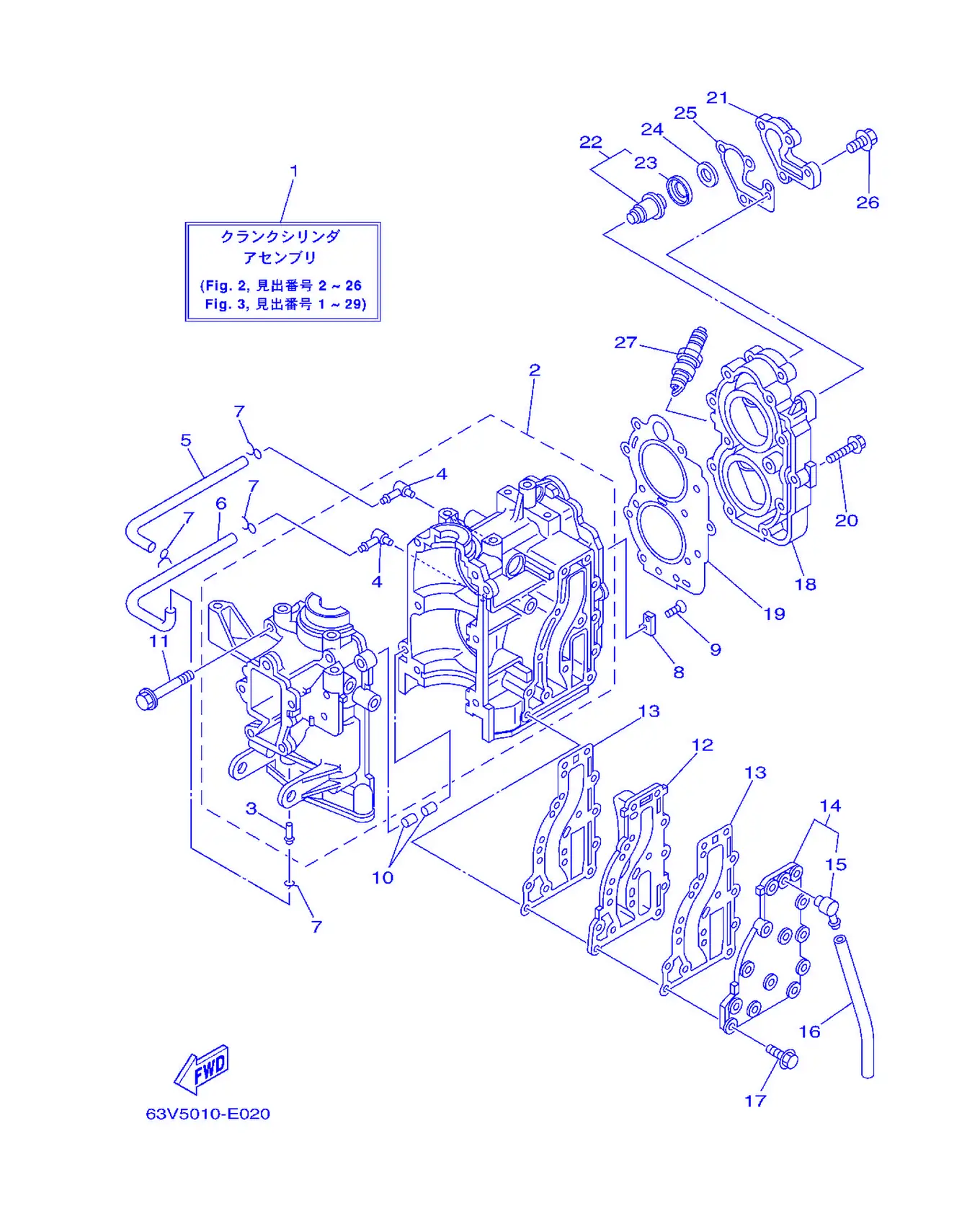

Fig. 8Cylinder & Crankcase

REF	Part No.	Name	Qty
1	63V-W0090-03-1S	Crank Cylinder Assembly	1
2	63V-15100-02-1S	Crankcase Assembly	1
3	624-14485-00	Pipe,Joint	1
4	650-14485-03	Pipe, Joint	2
5	90445-07M08	Hose	1
6	90445-07M08	Hose	1
7	90467-06016	Clip	4
8	682-11325-00	Anode	1
9	98780-05015	Screw, Flat Head	1
10	93606-12019	Pin, Dowel	2
11	90119-08M07	Bolt, With Washer	6
12	63V-41111-00-1S	Inner Cover, Exhaust	1
13	63V-41112-A0	Gasket, Exhaust Inner Cover	2
14	63V-41113-00-1S	Outer Cover, Exhaust	1
15	676-11372-00	Nipple,Hose	1
16	90445-09104	Hose (L300)	1
17	90119-06MA4	Bolt, With Washer	13
18	6E7-11111-01-1S	Head, Cylinder 1	1
19	63V-11181-A2	Gasket, Cylinder Head 1	1
20	90105-07M05	Bolt, Washer Based Head	11
21	682-12413-00-1S	Cover,Thermostat	1
22	6E5-12411-30	Thermostat	1
23	688-12412-00	Seal,Thermostat	1
24	90201-16M03	Washer,Plate	1
25	682-12414-A1	Gasket,Cover	1
26	90119-06MA2	Bolt, With Washer	4
27	94703-00217	Plug, Spark (NGK B7HS-10)	2

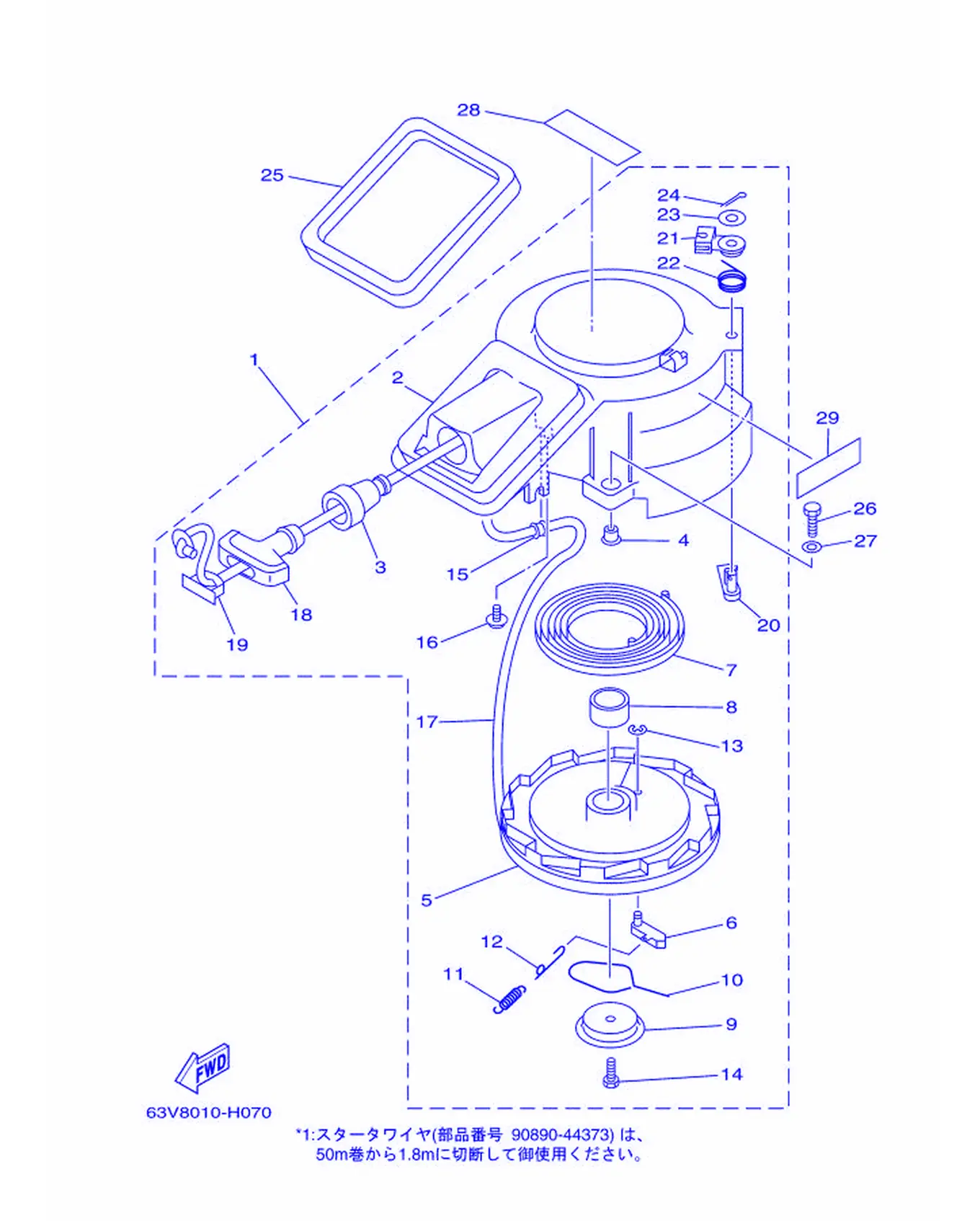

Fig. 9Starter

REF	Part No.	Name	Qty
1	63V-15710-13	StarterAssembly	1
2	63V-15711-02	Case,Starter	1
3	63V-15795-01	Guide, Rope	1
4	90387-06M05	Color	3
5	63V-15714-00	Drum, Sheave	1
6	63V-15741-00	Pawl, Drive	1
7	63V-15713-00	Spring,Starter	1
8	63V-15753-00	Bushing	1
9	63V-15716-00	Plate, Drive	1
10	63V-15705-01	Spring, Drive Pole	1
11	63V-15767-01	Spring	1
12	63V-15784-01	Spring, Return	1
13	63V-15744-00	Circlip	1
14	63V-15768-00	Bolt	1
15	63V-15764-00	Collar 1	1
16	63V-15793-00	Screw	1
18	6G1-15755-00	Handle,Starter	1
19	6G1-15779-00	Cover	1
20	63V-15794-00	Stopper	1
21	63V-15748-00	Plunger, Starter Stop	1
22	63V-15734-00	Spring, Return	1
23	63V-15726-00	Washer, Flat	1
24	91490-16018	Pin, Cotter	1
25	63V-15762-00	Seal,Rubber 2	1
26	97095-06020	Bolt	3
27	92995-06600	Washer	3
28	6AH-81995-00	Label, Warning	1
29	6AH-81994-00	Label, Safety	1

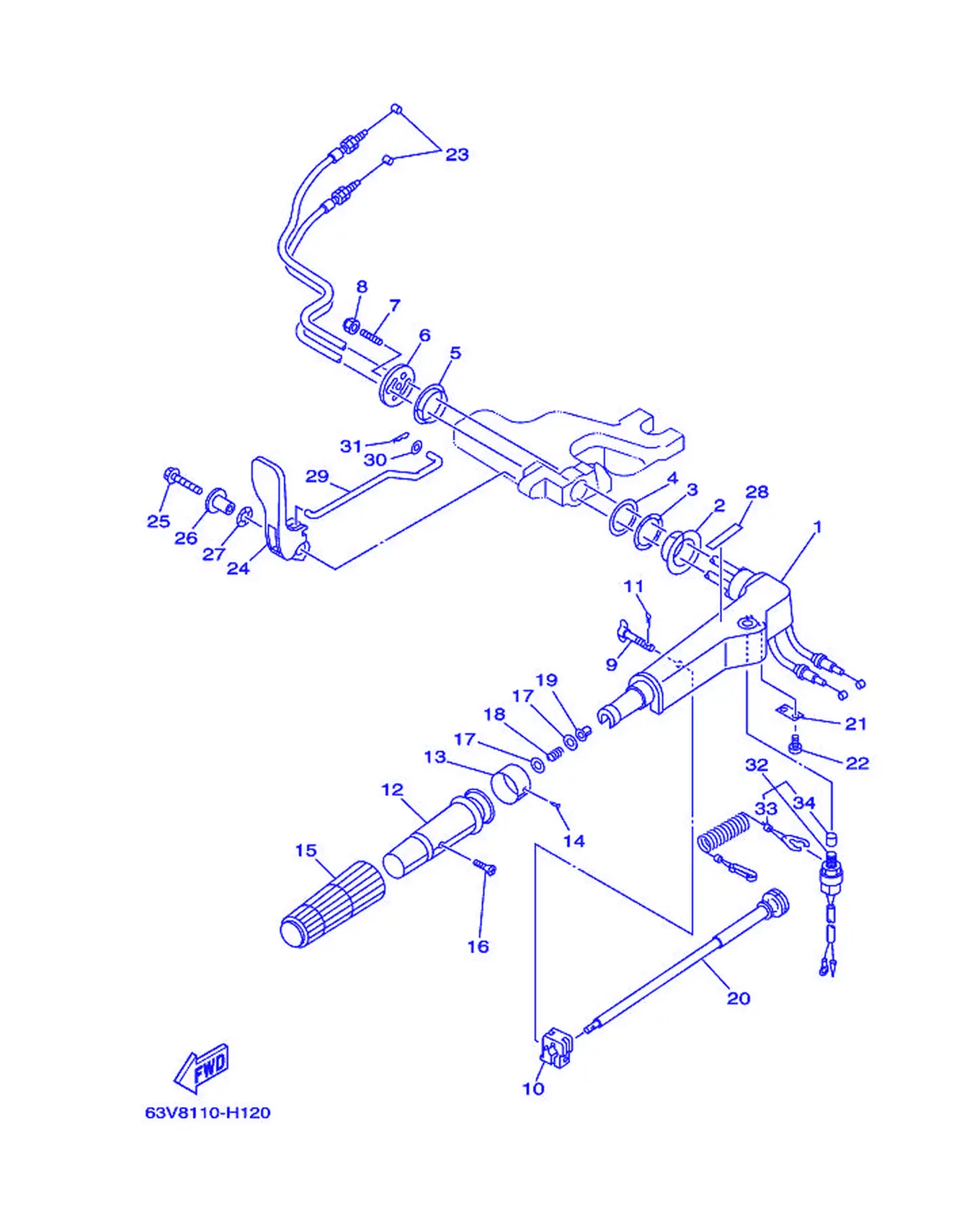

Fig. 10Steering

REF	Part No.	Name	Qty
1	63V-42111-01-4D	Handle,Steering	1
2	90386-34M97	Bushing	1
3	90206-36M21	Washer, Wave	1
4	90202-36M55	Washer,Plate	1
5	90386-33M96	Bushing	1
6	6G1-42131-02	Cover,HandleSteering	1
7	90116-08016	Bolt, Stud	1
8	90185-08057	Nut, Self-Locking	1
9	6G1-42125-01	Bolt, Friction Adjust	1
10	6G1-42126-00	Friction, Steering Handle	1
11	91490-16010	Pin, Cotter	1
12	664-42119-00	Grip,SteeringHandle	1
13	6H2-42137-00	Indicator, Throttle	1
14	90269-02M09	Rivet	1
15	6G1-42177-00	Rubber,Handle	1
16	90149-05M13	Screw	1
17	90201-10M02	Washer,Plate	2
18	90501-23215	Spring, Compression	1
19	90386-08032	Bushing	1
20	6G1-42138-01	Lever,Throttle	1
21	6E0-42159-02	Stay	1
22	97885-05012	Screw, Pan Head	2
23	6L2-26301-01	ThrottleCableAssembly	2
24	63V-44111-02	Handle, Gear Shift	1
25	90119-06M05	Bolt, With Washer	1
26	90387-06M86	Color	1
27	90206-15M18	Washer, Wave	1
28	6E0-44191-11	Indicator, Shift	1
29	63V-44124-02	Link, Shift Rod	1
30	90202-06009	Washer,Plate	1
31	90468-18008	Clip	1
32	65W-82575-01	Engine Stop Switch Assembly	1
33	682-82556-00	Stopper	1
34	689-8257Y-00	Cap	1

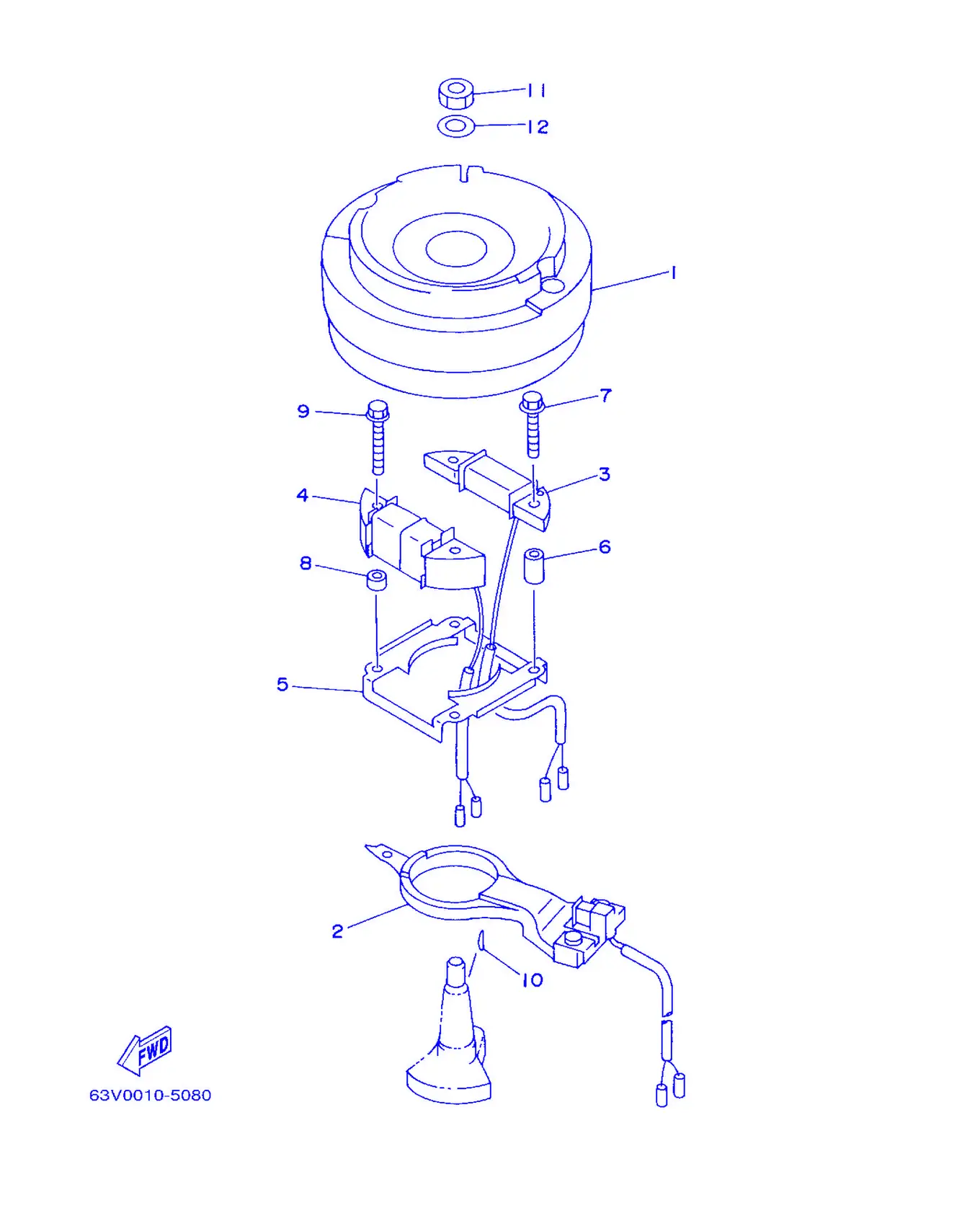

Fig. 11Generator

REF	Part No.	Name	Qty
1	63V-85550-11	Rotor Assembly	1
2	63V-85580-01	Coil, Pulser	1
3	63V-85520-01	Coil, Charge	1
4	63V-85533-00	Coil, Lighting	1
5	63V-41611-00	Retainer, Magnet Base	1
6	90387-06M53	Color	2
7	90105-06M68	Bolt, Flange	2
8	90387-06M24	Color	2
9	90105-06M69	Bolt, Flange	2
10	90280-05013	Key, Woodruff	1
11	90170-12066	Nut	1
12	90201-12472	Washer,Plate	1

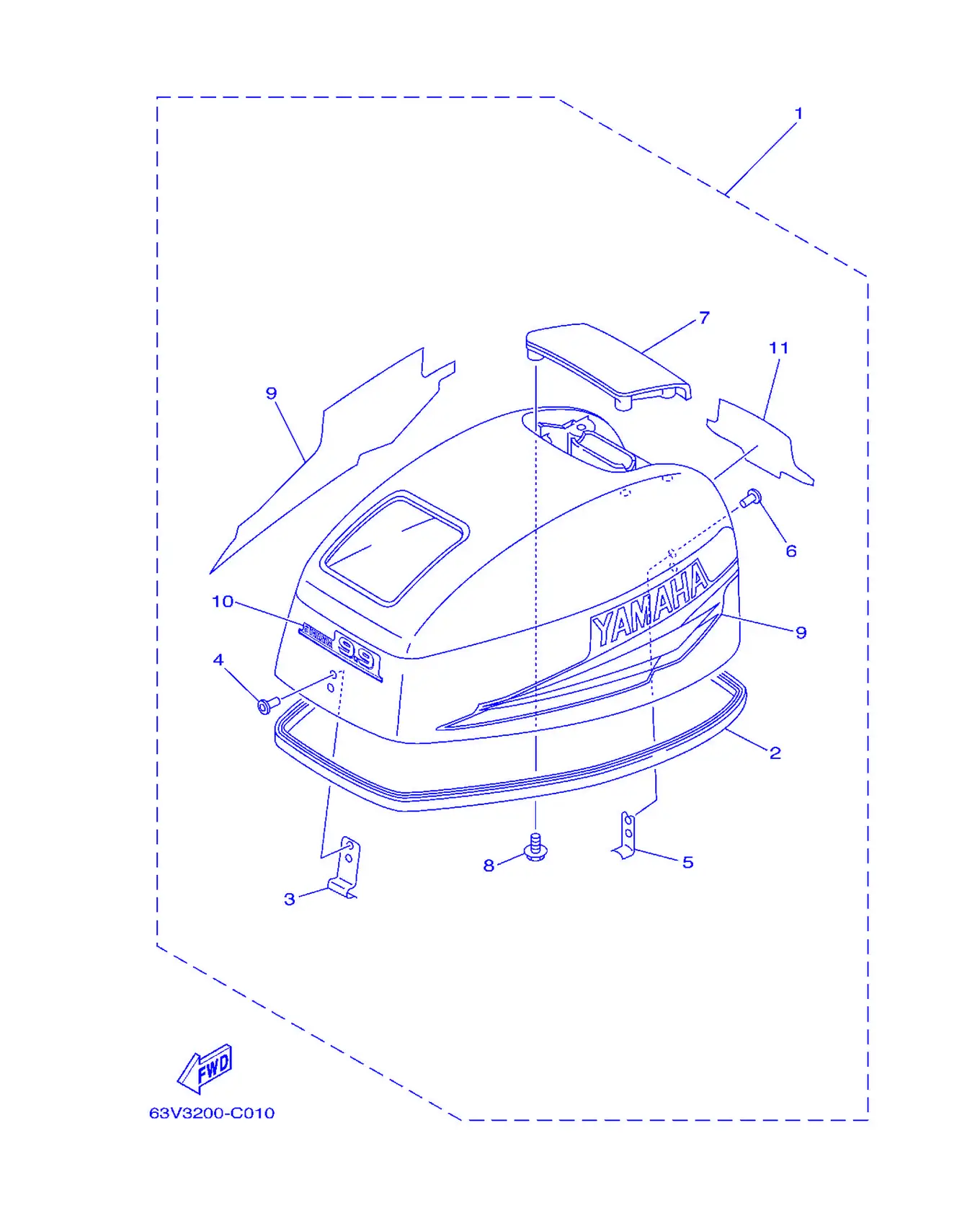

Fig. 12Top Cowling

REF	Part No.	Name	Qty
1	63V-42610-20-4D	Top Cowling Assembly	1
2	63V-42615-00	Seal	1
3	6G1-42651-02	Fook	1
4	90266-04M04	Rivet	2
5	6L2-42647-00	Holder, Clamp Band	1
6	90266-04M04	Rivet	2
7	63V-42613-01-4D	Molding, Air Duct	1
8	97595-06516	Bolt, With Washer	4
9	63V-W0070-11	Graphic Set	1
10	63V-42677-20	Graphic, Front	1
11	63V-42678-10	Graphic, Rear	1

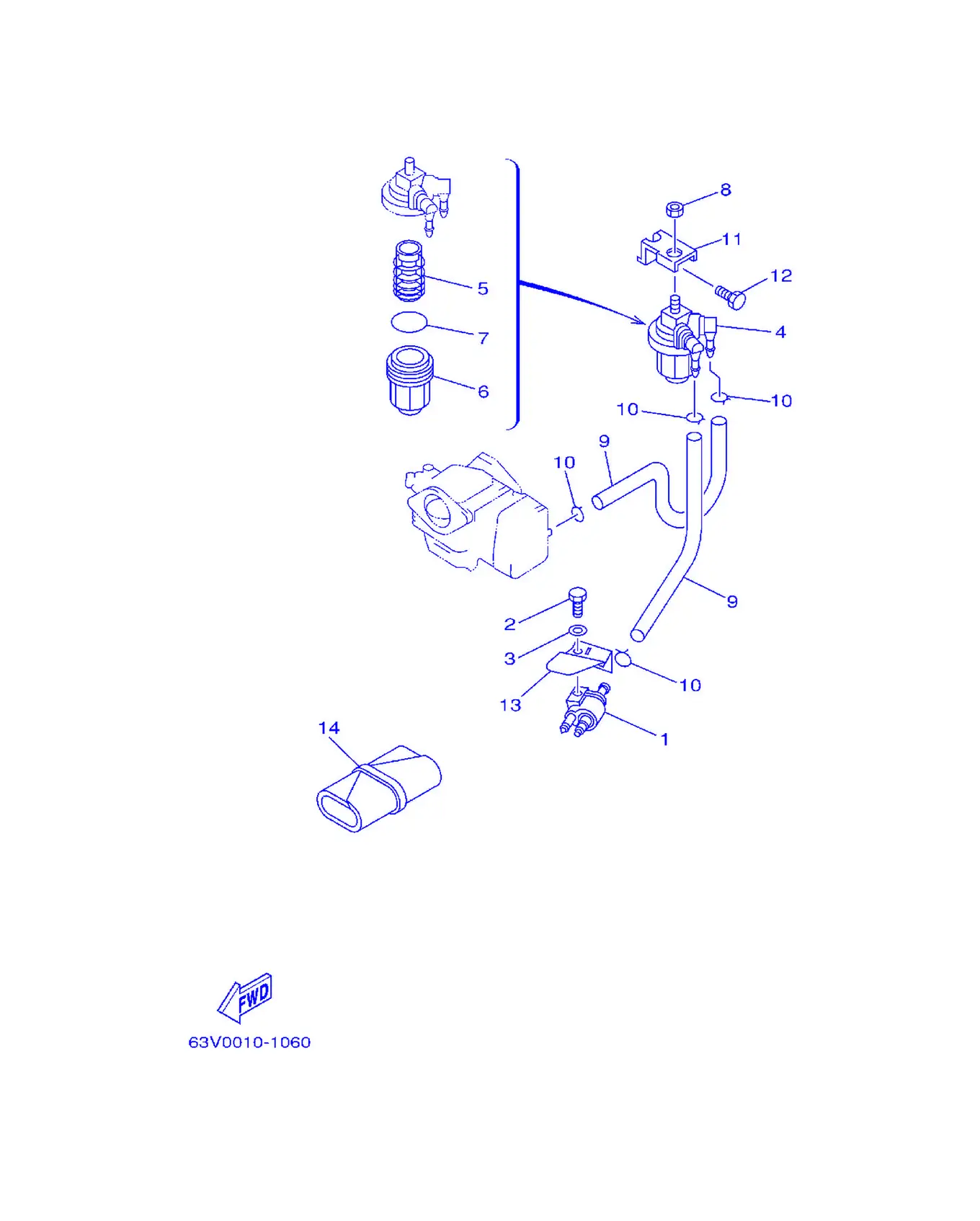

Fig. 13Fuel

REF	Part No.	Name	Qty
1	6G1-24304-02	Fuel Pipe Joint Complete	1
2	97095-06020	Bolt	1
3	92995-06600	Washer	1
4	61N-24560-00	Filter Assembly	1
5	61N-24563-00	Element, Filter	1
6	61N-24521-00	Cup, Filter	1
7	93210-32738	O-ring	1
8	95380-08600	Nut	1
9	90445-09M00	Hose (L180)	2
10	90467-08004	Clip	4
11	682-24566-01	Bracket, Filter	1
12	97013-06010	Bolt	1
13	63V-24396-01	Plate	1
14	656-W2810-02	ToolKit	1

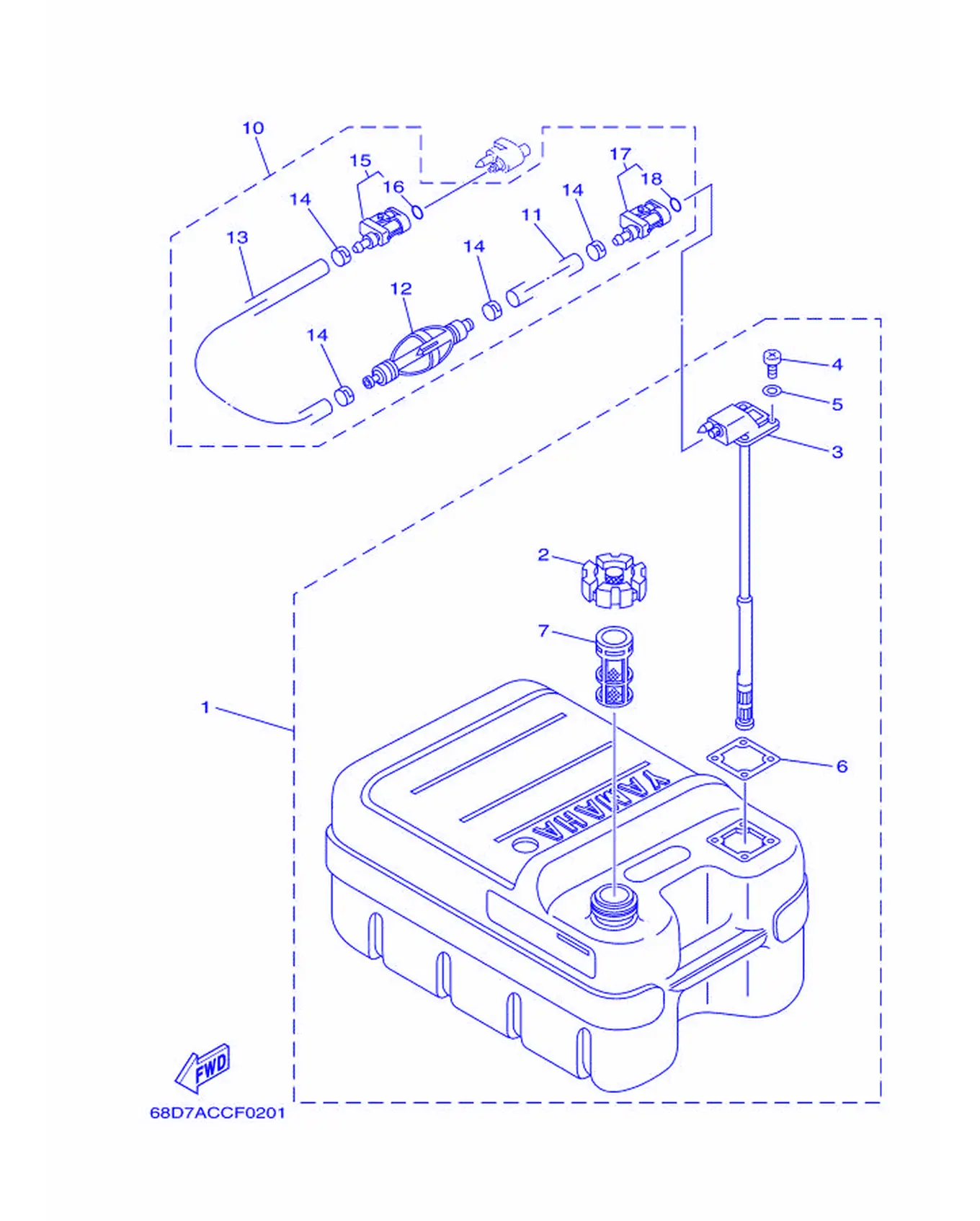

Fig. 14Fuel Tank

REF	Part No.	Name	Qty
1	6YJ-W2420-J1	FuelTankAssembly (24L)	1
2	6YJ-24610-01	Cap Assembly	1
3	6Y1-24260-12	Fuel Meter Assembly	1
4	90157-05M19	Screw, Pan Head	4
5	6Y1-24329-00	Seal	4
6	6Y1-24268-00	Gasket, Fuel Meter	1
7	6YJ-24167-00	Strainer	1
10	6Y1-24306-55	FuelPipeComplete 1	1
11	90445-11M06	Hose (L:2050MM)	1
12	6Y1-24360-52	Primer Pump Assembly	1
13	90445-11M05	Hose (L:850MM)	1
14	650-24351-51	Band 1	4
15	6G1-24305-05	Fuel Pipe Joint Complete	1
16	93210-08287	O-ring	1
17	6Y1-24305-06	Fuel Pipe Joint Complete	1
18	93210-08287	O-ring	1

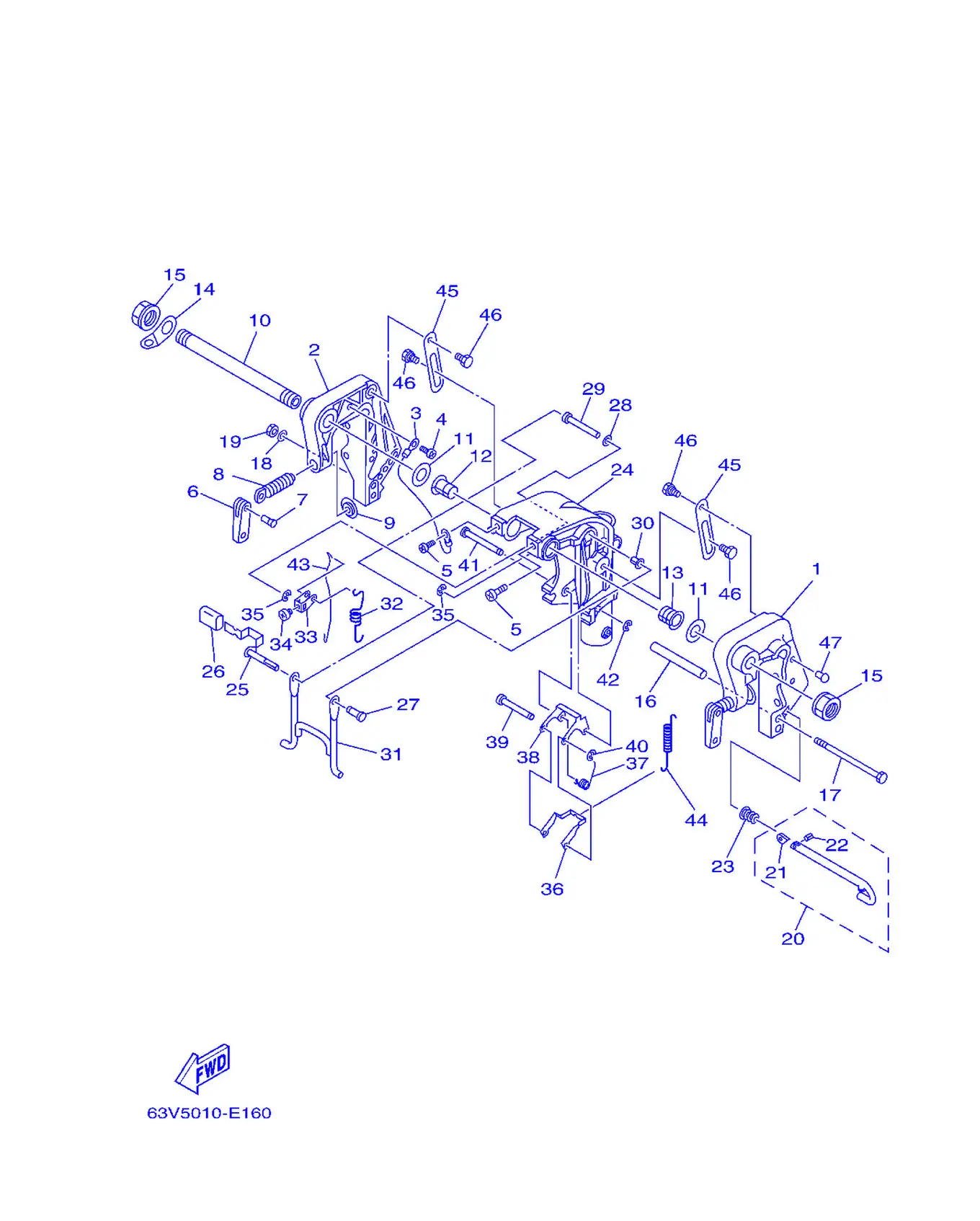

Fig. 15Bracket 1

REF	Part No.	Name	Qty
1	63V-43111-07-4D	Bracket,Clamp 1	1
2	63V-43112-08-4D	Bracket,Clamp 2	1
3	66M-82148-00	Wire,Lead 4	1
4	97885-06008	Screw, Pan Head	1
5	97885-08010	Screw, Pan Head	2
6	6E0-43118-01	Handle, Transom Clamp	2
7	90243-04M01	Pin	2
8	6E7-43116-00	Screw, Transom Clamp	2
9	648-43114-01	Pad, Transom Clamp	2
10	63W-43131-01	Bolt,ClampBracket	1
11	90202-22M54	Washer,Plate	2
12	90386-22M94	Bushing	1
13	90386-22M94	Bushing	1
14	6J8-43113-01	Plate,ClampBracket	1
15	90185-22043	Nut, Self-Locking	2
16	90387-06M13	Color	1
17	90101-06M29	Bolt, Hexagon	1
18	92995-06600	Washer	1
19	95380-06700	Nut	1
20	689-43160-00	TiltRodAssembly	1
21	689-43165-00	Plate, Tilt Lock	1
22	91690-30008	Pin,Spring	1
23	90502-10M07	Spring, Conical	1
24	63V-43311-03-4D	Bracket, Swivel 1	1
25	66M-43630-01	TiltLeverAssembly	1
26	682-43318-01	Cover	1
27	63V-43191-00	Shaft, Stopper	1
28	90202-07M60	Washer,Plate	1
29	90387-07M07	Color	1
30	90386-07M95	Bushing	1
31	66M-43350-01	Receiver Assembly	1
32	90507-20M00	Spring, Tension	1
33	63V-43641-01	Lever,Tilt	1
34	90157-05014	Screw, Pan Head	1
35	99080-05600	Circlip	2
36	63V-43614-10	Plate,TiltLock	1
37	90508-18M41	Spring, Torsion	1
38	66R-43615-00	Plate,TiltLock	1
39	66R-43611-00	Shaft,TiltLock	1
40	93430-04M03	Circlip	1
41	63V-43659-00	Shaft, Reverse Lock	1
42	99080-05600	Circlip	1
43	66R-43617-00	Rod,TiltLock	1
44	63V-43656-00	Spring, Reverse Lock 1	1
45	63V-43181-00	Lever, Tilt Stop	2
46	90109-06M84	Bolt	4
47	90269-02M08	Rivet	2

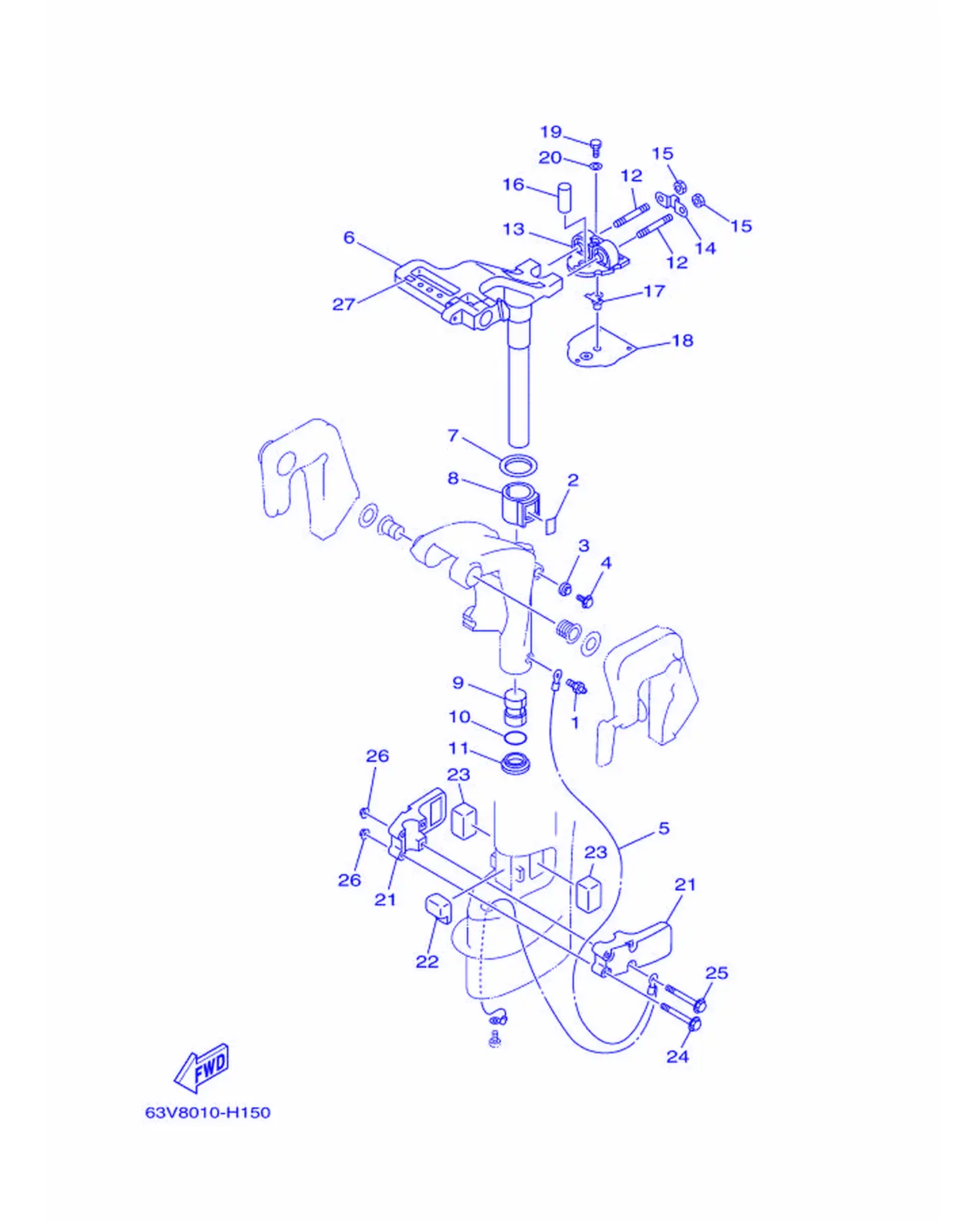

Fig. 16Bracket 2

REF	Part No.	Name	Qty
1	93700-06M03	Nipple, Grease	1
2	63V-42528-00	Plate, Friction	1
3	689-43373-01	Seal,Damper	1
4	90105-06M07	Bolt, Flange	1
5	63V-82127-00	Wire,Lead 2	1
6	63V-42511-04-4D	Bracket,Steering	1
7	90209-40008	Washer	1
8	65F-42537-00	Bushing, Pivot Shaft	1
9	90386-30048	Bushing	1
10	93210-29M94	O-ring	1
11	90386-30M60	Bushing	1
12	90116-08M54	Bolt, Stud	2
13	63V-44514-01-5B	Mount Damper, Upper Side	1
14	63V-44526-00	Plate	1
15	95380-08600	Nut	2
16	90387-16002	Color	1
17	63V-44366-01	Damper,WaterSeal	1
18	63V-45114-A1	Gasket,UpperCasing	1
19	97095-06018	Bolt	3
20	92995-06600	Washer	3
21	63V-44551-01-4D	Housing, Lower Mount Rubber	2
22	63V-44557-00	Mount Damper, Lower Front	1
23	682-44555-00	Mount Damper, Lower Side	2
24	97575-06555	Bolt, With Washer	2
25	97575-06575	Bolt, With Washer	2
26	90179-06M28	Nut	4
27	6E7-42791-H0	Mark 1	1

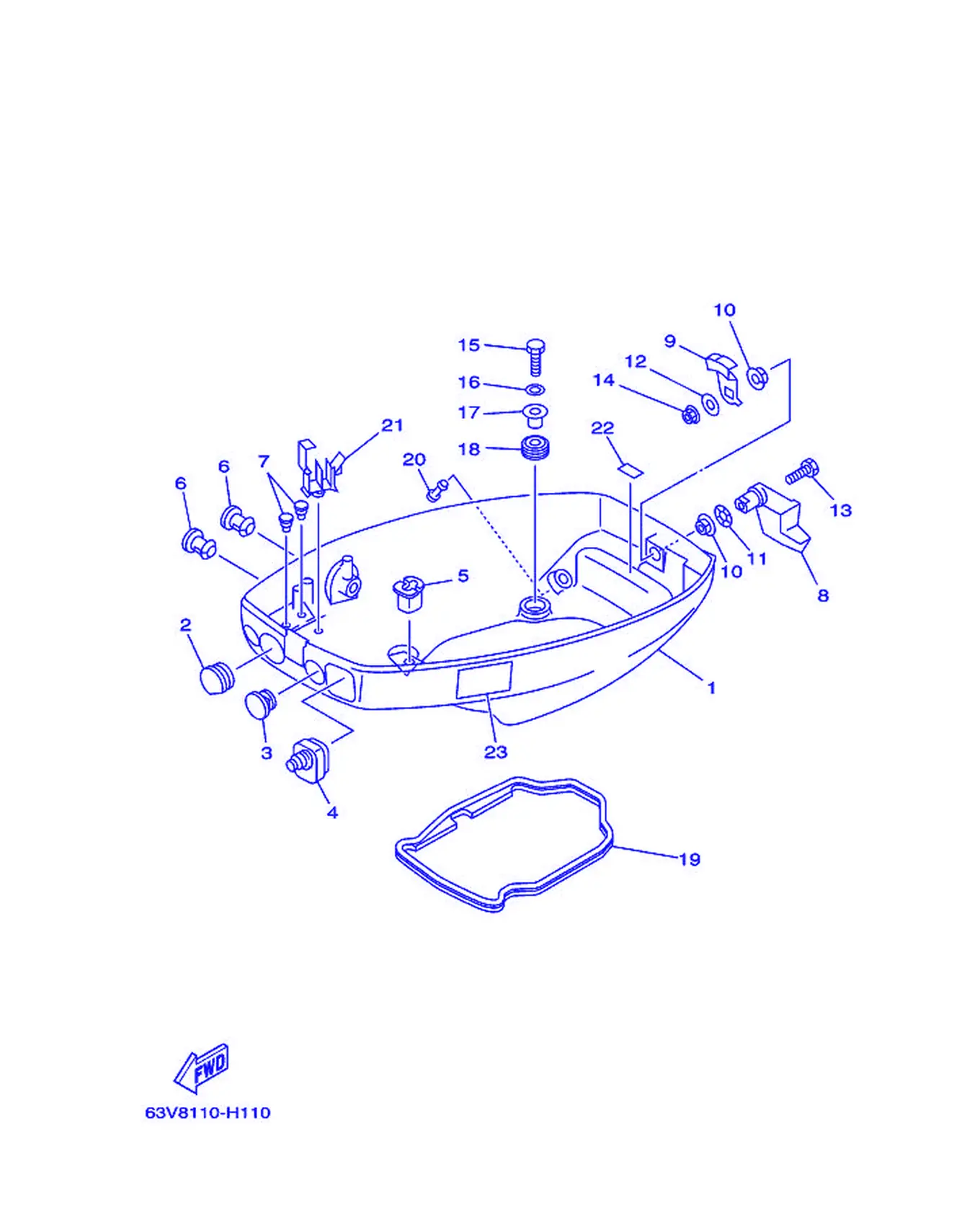

Fig. 17Bottom Cowling

REF	Part No.	Name	Qty
1	63V-42711-03-4D	Cowling, Bottom 1	1
2	682-42724-00	Grommet	1
3	682-42725-02	Grommet	1
4	63V-42726-00	Grommet	1
5	682-42727-00	Grommet	1
6	6G1-42748-00	Grommet	2
7	90480-06M19	Grommet	2
8	63V-42815-01-4D	Lever,Clamp	1
9	6E7-42816-00	Lever,Clamp	1
10	90386-12M45	Bushing	2
11	90206-12052	Washer, Wave	1
12	90201-06068	Washer,Plate	1
13	97095-06025	Bolt	1
14	95380-06700	Nut	1
15	97095-06025	Bolt	4
16	92995-06600	Washer	4
17	90387-06034	Color	4
18	90480-15M31	Grommet	4
19	63V-42716-02	Rubber,Seal 1	1
20	6BL-44391-00	Nipple,Hose	1
21	90465-25M57	Clamp	1
22	6E7-42791-00	Mark 1	1
23	6AH-42794-00	Label, Warning (General)	1

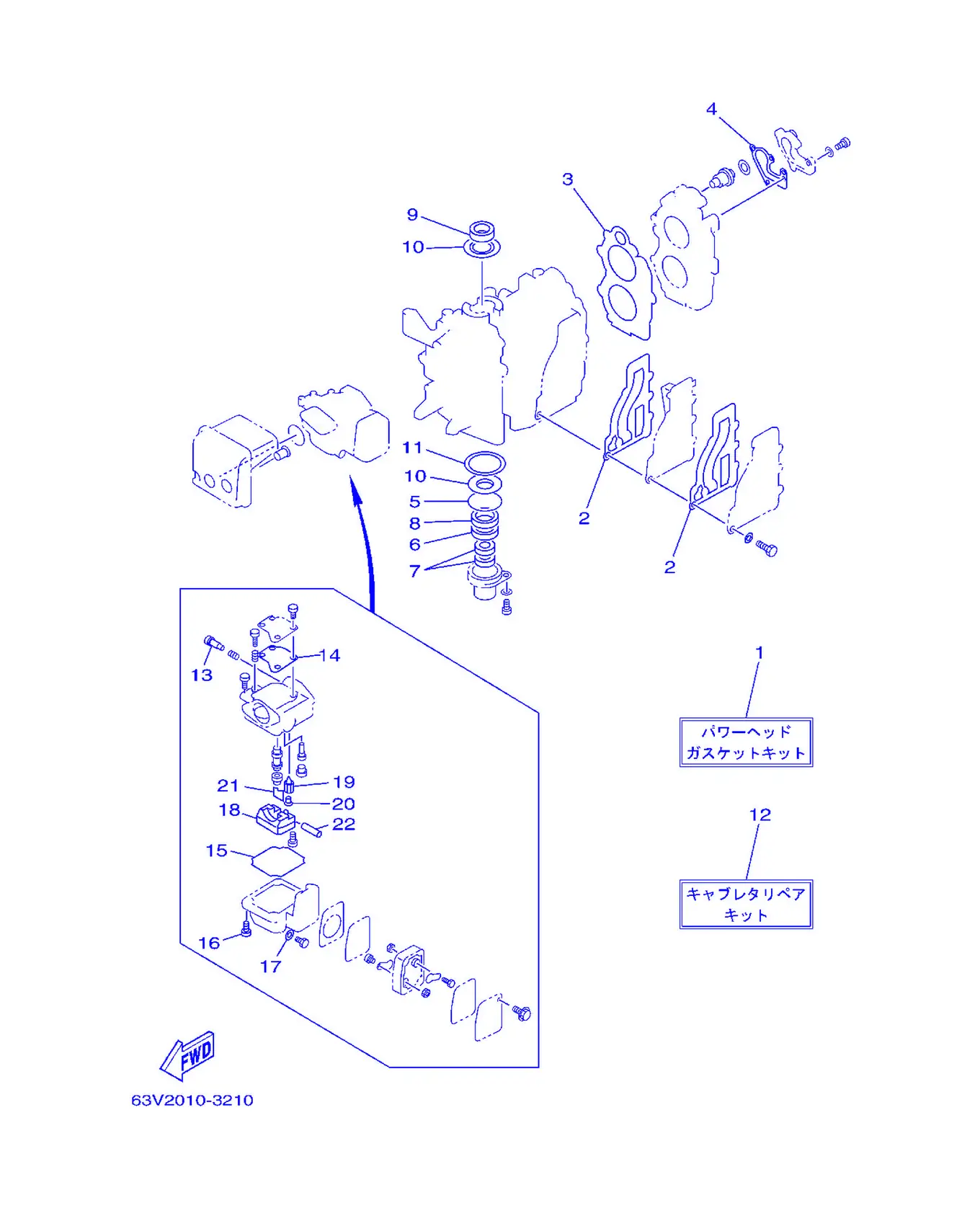

Fig. 18Repair Kit 1

REF	Part No.	Name	Qty
1	63V-W0001-02	Power Head Gasket Kit	1
2	63V-41112-A0	Gasket, Exhaust Inner Cover	2
3	63V-11181-A2	Gasket, Cylinder Head 1	1
4	682-12414-A1	Gasket,Cover	1
5	93210-46M16	O-ring	1
6	93101-25018	OilSeal	1
7	93101-13018	OilSeal	2
8	93102-25M48	OilSeal	1
9	93110-23M00	OilSeal	1
10	63V-11445-00	Spacer	2
11	90201-46M29	Washer,Plate	1
12	63V-W0093-00	CarburetorRepair Kit	1
13	679-14923-00	Screw,Pilot	1
14	63V-14126-00	Gasket	1
15	63V-14984-00	Gasket, Float Chamber	1
16	97980-04114	Screw, Washer	4
17	65W-14398-00	Gasket	1
18	63V-14985-00	Float	1
19	6G1-14546-01	Valve, Needle	1
20	676-14186-00	Pin, Float	1
21	663-14159-00	Clip	1
22	6H4-14548-00	Pin, Float Arm	1

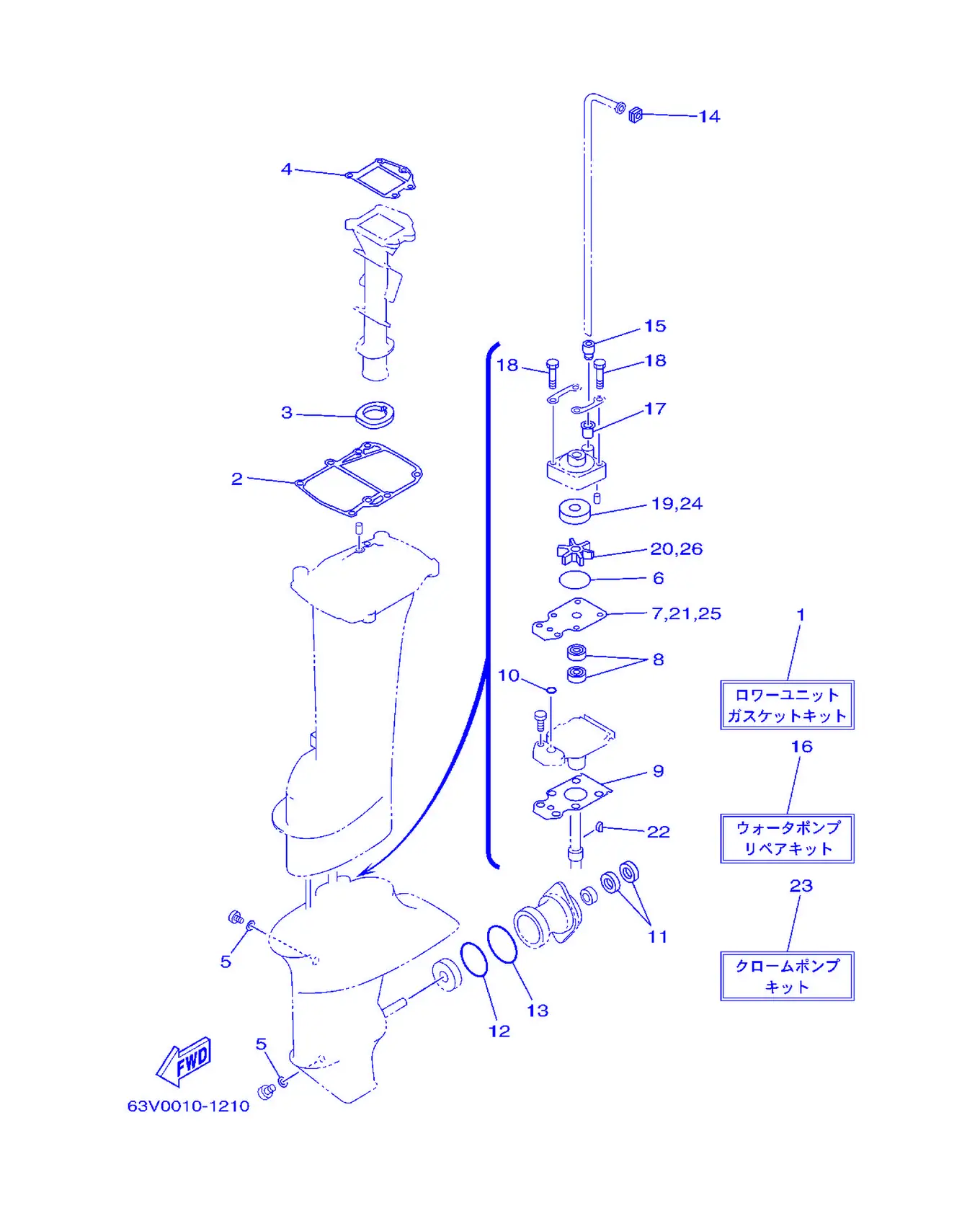

Fig. 19Repair Kit 2

REF	Part No.	Name	Qty
1	63V-W0001-22	LowerUnitGasket Kit	1
2	63V-45113-A1	Gasket,UpperCasing	1
3	63V-41135-00	Gasket, Exhaust Manifold	1
4	63V-41133-A1	Gasket, Exhaust Manifold	1
5	90430-08020	Gasket	2
6	93210-44398	O-ring	1
7	63V-44323-00	Outer Plate, Cartridge	1
8	93101-20048	OilSeal	2
9	63V-45315-A0	Packing, Lower Casing	1
10	93210-06ME6	O-ring	1
11	93101-17054	OilSeal	2
12	93210-57M09	O-ring	1
13	93210-56M80	O-ring	1
14	63V-44365-10	Damper,WaterSeal	1
15	63V-44368-00	Rubber,WaterSeal 4	1
16	63V-W0078-01	Water PumpRepair Kit	1
17	647-44366-00	Damper,WaterSeal	1
18	97080-08045	Bolt	4
19	63V-44322-00	Insert, Cartridge	1
20	63V-44352-01	Impeller	1
21	63V-44323-00	Outer Plate, Cartridge	1
22	63V-44338-00	Key, Woodruff	1
23	63V-W0078-0A	Chrome Pump Kit	1
24	63V-44322-40	Insert, Cartridge	1
25	63V-44323-40	Outer Plate, Cartridge	1
26	63V-44352-01	Impeller	1

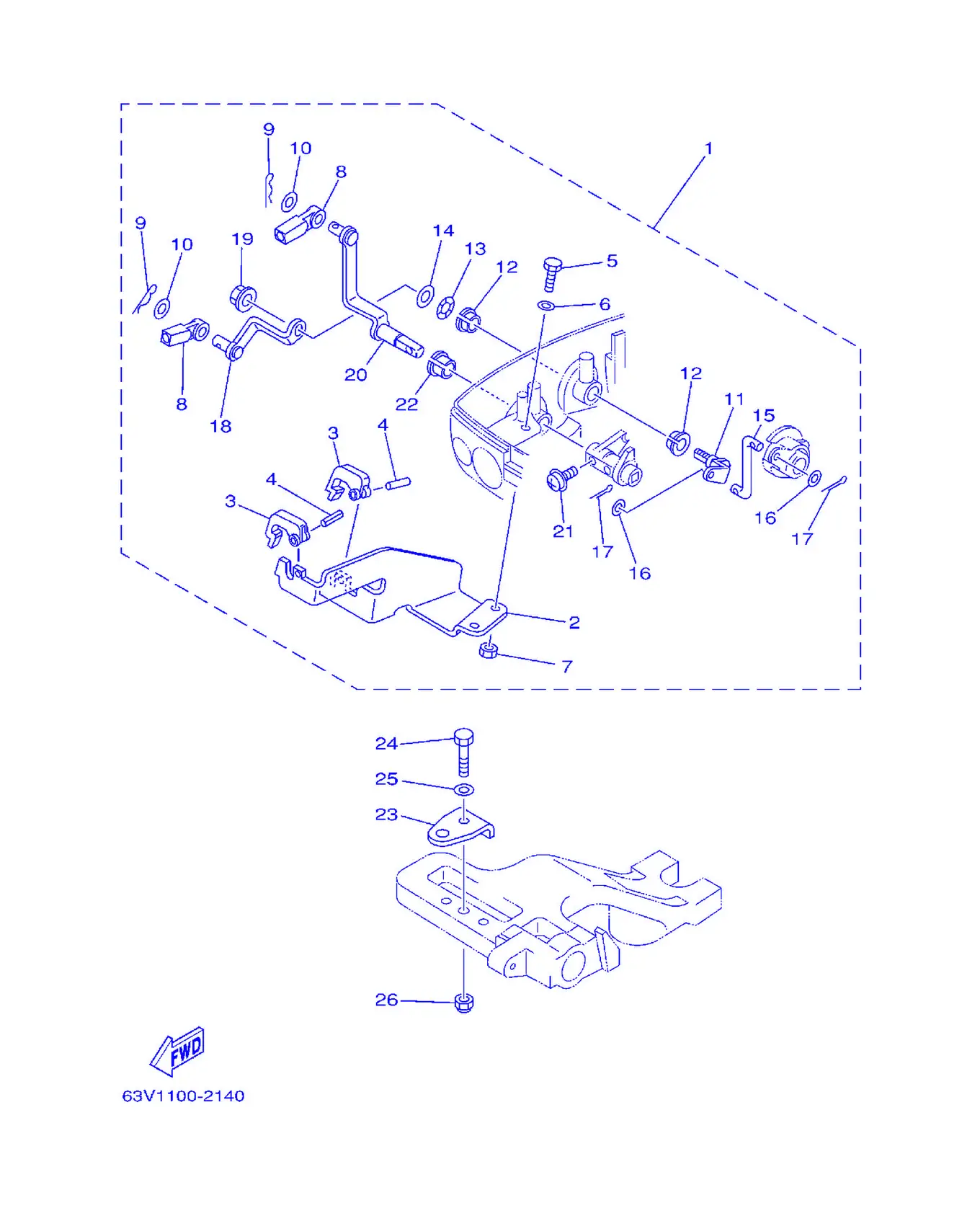

Fig. 20Remote Control Attachment

REF	Part No.	Name	Qty
1	63V-48501-00	Remote Control Attachment	1
2	63V-48531-00	Bracket, Remote Control 1	1
3	682-48538-50	Clamp,Cable 1	2
4	91690-30012	Pin,Spring	2
5	97095-06016	Bolt	2
6	92995-06600	Washer	2
7	95380-06600	Nut, Hexagon	2
8	663-48344-00	Cable End, Remote Control	2
9	90468-18008	Clip	2
10	90201-08M12	Washer,Plate	2
11	63V-42154-00	Lever Throttle Control	1
12	90386-10025	Bushing	2
13	90206-10M04	Washer, Wave	1
14	90201-10M02	Washer,Plate	1
15	63V-42192-00	Rod 2	1
16	90201-04M06	Washer, Plate	2
17	91490-20010	Pin, Cotter	2
18	63V-48534-00	Throttle Lever, Control	1
19	95780-08300	Nut, Flange	1
20	63V-48544-00	Lever, Shift Control	1
21	90159-05M25	Screw, With Washer	1
22	90386-10009	Bushing	1
23	63V-48511-01	Hook,Steering	1
24	97075-08035	Bolt	1
25	92995-08600	Washer	1
26	90185-08057	Nut, Self-Locking	1

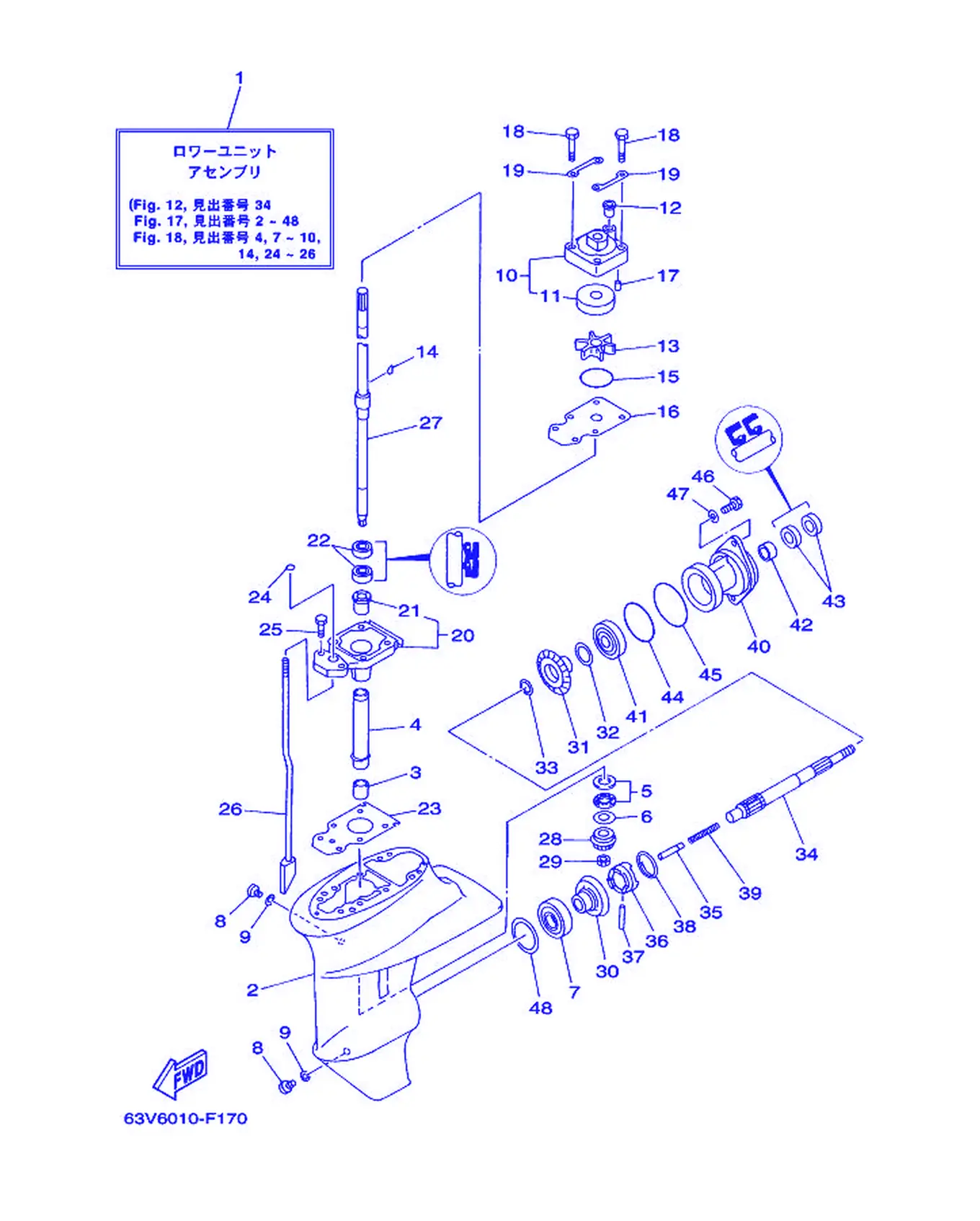

Fig. 21Lower Casing & Drive 1

REF	Part No.	Name	Qty
1	63V-45300-13-4D	LowerUnitAssembly	1
2	63V-45311-01-4D	Casing,Lower	1
3	93315-314V8	Bearing	1
4	63V-45536-00	Sleeve,Drive Shaft	1
5	93341-41414	Bearing	1
6	6E8-45587-10	Shim (T:1.13MM)	1
6	6E8-45587-30	Shim (T:1.20MM)	1
7	93332-00005	Bearing	1
8	90340-08002	Plug, Straight Screw	2
9	90430-08020	Gasket	2
10	63V-44301-00	Water Pump Housing Complete	1
11	63V-44322-00	Insert, Cartridge	1
12	647-44366-00	Damper,WaterSeal	1
13	63V-44352-01	Impeller	1
14	63V-44338-00	Key, Woodruff	1
15	93210-44398	O-ring	1
16	63V-44323-00	Outer Plate, Cartridge	1
17	93604-12M07	Pin, Dowel	2
18	97080-08045	Bolt	4
19	63V-44328-00	Plate	2
20	63V-45331-00-5B	Housing,Bearing	1
21	626-45316-09	Bushing, Drive Shaft	1
22	93101-20048	OilSeal	2
23	63V-45315-A0	Packing, Lower Casing	1
24	93210-06ME6	O-ring	1
25	97080-08025	Bolt	2
26	63V-44150-10	Shift Cam Assembly	1
27	63V-45510-11	Drive ShaftAssembly	1
28	63V-45551-00	Pinion (13T)	1
29	90179-08M06	Nut	1
30	6E7-45560-01	Gear 1 (27T)	1
31	6E7-45571-00	Gear	1
32	626-45577-00	Shim (T:0.10MM)	1
32	626-45577-10	Shim (T:0.20MM)	1
32	626-45577-20	Shim (T:0.30MM)	1
32	626-45577-30	Shim (T:0.40MM)	1
32	626-45577-40	Shim (T:0.50MM)	1
33	90201-17682	Washer,Plate	1
34	683-45611-00	Shaft,Propeller	1
35	650-45635-00	Plunger, Shift	1
36	682-45631-00	Clutch, Dog	1
37	90250-05010	Pin, Straight	1
38	648-45633-00	Ring, Cross Pin	1
39	90501-14M06	Spring, Compression	1
40	683-45361-02-4D	Cap,Lower Casing	1
41	93306-00501	Bearing	1
42	93315-317U2	Bearing	1
43	93101-17054	OilSeal	2
44	93210-57M09	O-ring	1
45	93210-56M80	O-ring	1
46	97095-06020	Bolt	2
47	92995-06600	Washer	2
48	664-45567-01	Shim (T:0.10MM)	1
48	664-45567-10	Shim (T:0.12MM)	1
48	664-45567-20	Shim (T:0.15MM)	1
48	664-45567-30	Shim (T:0.18MM)	1
48	664-45567-40	Shim (T:0.30MM)	1
48	664-45567-50	Shim (T:0.40MM)	1
48	664-45567-60	Shim (T:0.50MM)	1

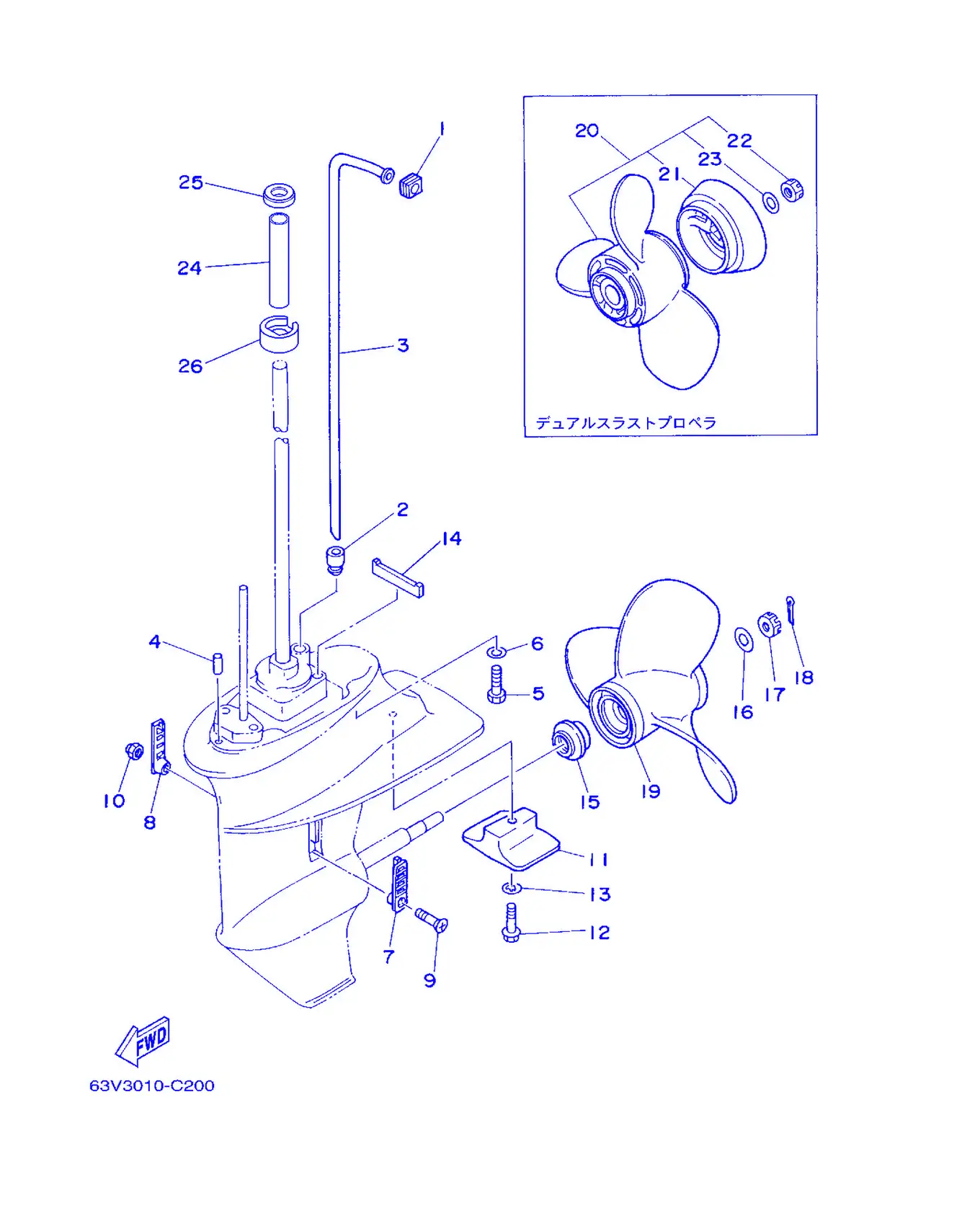

Fig. 22Lower Casing & Drive 2

REF	Part No.	Name	Qty
1	63V-44365-10	Damper,WaterSeal	1
2	63V-44368-00	Rubber,WaterSeal 4	1
3	63V-44361-11	Tube, Water	1
4	93604-12M07	Pin, Dowel	2
5	97075-08030	Bolt	4
6	92995-08600	Washer	4
7	6G1-45214-00	Cover, Water Inlet 1	1
8	63V-45215-00	Cover, Water Inlet 2	1
9	90152-05M04	Screw, Countersunk	1
10	90185-05002	Nut, Self-Locking	1
11	61N-45251-01	Anode	1
12	95895-06030	Bolt, Flange	1
13	92990-06300	Washer, Internal Tooth	1
14	63V-45375-00	Damper,Seal	1
15	6E7-45987-01	Spacer	1
16	90201-10M01	Washer,Plate	1
17	90171-10M01	Nut, Castle	1
18	91490-30020	Pin, Cotter	1
19	683-45941-00-EL	Propeller (3X9-1/4 X12 -J)	1
19	683-45943-00-EL	Propeller (3X9-1/4 X10-1/2 -J)	1
19	683-45945-00-EL	Propeller (3X9-1/4 X9 -J)	1
19	683-45947-00-EL	Propeller (3X9-1/4 X8 -J)	1
19	683-45949-00-EL	Propeller (3X9-1/2 X6-1/2 -J)	1
19	683-45952-00-EL	Propeller (3X9-1/4 X9-3/4 -J)	1
19	63V-45943-10-EL	Propeller (3X9-1/4X11-J1)	1
19	63V-45945-10-EL	Propeller (3X9-1/4X9-J1)	1
19	63V-45947-00-EL	Propeller (3X9-1/4X8-J)	1
19	63V-45952-10-EL	Propeller (3X9-1/4X10-J1)	1
20	683-W4591-02-EL	Propeller (3X9-3/4 X8 -J)	1
20	683-W4592-02-EL	Propeller (3X9-3/4 X6-1/2 -J)	1
21	6E7-45986-00	Ring, Deflector	1
22	90171-10M07	Nut, Castle	1
23	90201-10M02	Washer,Plate	1
24	63V-44362-00	Tube, Water	1
25	63V-44375-00	Grommet, Water Tube 1	1
26	63V-44376-00	Grommet, Water Tube 2	1
